Product Details:
|
| Name: | 320mesh Herb Grain Pharma Process Equipment MultiFunction | Output (kg/h):: | 20 - 150 Kg/h |
|---|---|---|---|
| Capacity:: | 0.5-1kg/h | Weight (KG):: | 1200 KG |
| Output Size (mesh):: | 80 - 320 Mesh | Voltage:: | 380V |
| Material: | Stainless Steel | Key Word: | Herb Grain Grinder |
| Highlight: | MultiFunction Pharmaceutical Machinery Equipment,320mesh Pharma Process Equipment,380V Pharma Process Equipment |
||
320mesh Herb Grain Pharma Process Equipment MultiFunction
Product Overview of Herb Grain Grinder
Guided by aerodynamic theory, TQ system is equipped with flat air mill, circulating tube air mill, impact jet mill, reverse jet mill and AFG fluidized bed reverse jet mill.
Product Parameters of Herb Grain Grinder
|
Model
|
TQG10
|
TQG15
|
TQG20
|
TQG30/TQX30
|
TQG40/TQX40
|
TQG50/TQX50
|
|
Feed partide size
|
＞60
|
＞60
|
＞60
|
＞60
|
＞60
|
＞60
|
|
Capacity(kg/h)
|
0.5-40
|
0.5-40
|
0.5-40
|
0.5-40
|
0.5-40
|
0.5-40
|
|
Rotary speed(rpm)
|
0.5-1
|
44201
|
44331
|
15-30/20-45
|
＞30/＞45
|
＞50/＞75
|
|
Air compression consumption(m³/min)
|
1
|
2.5
|
3
|
6
|
10
|
20
|
|
Intake air pressure(Mpa)
|
＞0.75
|
＞0.75
|
＞0.75
|
＞0.75
|
＞0.75
|
＞0.75
|
|
Total power of main engine(kw)
|
3.75
|
5.75
|
9.75
|
10.5/16.5
|
15.5/21.5
|
23.5/29.5
|
|
Size(mm)
|
2542*790*1900
|
3100*1050*2100
|
3768*1870*2583
|
5429*1893*3194
|
6539*2047*4480
|
7540*2268*4780
|
|
Weight(kg)
|
475
|
1654
|
2165
|
2565/2670
|
3565/3710
|
4370/4538
|
Feature of Herb Grain Grinder
1. Pollution-free: Material collides with each other through high-speed airflow to avoid secondary pollution in processing;
2. Low temperature: material temperature in crushing chamber is less than 10 C.
3. High kinetic energy of crushing: The supersonic airflow velocity produced by the equipment is over Mach 3, which makes the material obtain great kinetic energy. When the material collides, it will be able to produce high kinetic energy.
Converted into impact force, the fineness of the crushed powder can reach 0.5 micron.
4. Low-speed grading: Unique designed grading flow field and vertical grading wheel with variable frequency speed regulation can classify the product size at low speed (less than 3000 rpm, greatly prolonging the service life of grading machine), which not only strictly restricts the "big particles" but also avoids over-comminution. Therefore, the product size distribution is narrow and uniform.
5. Negative pressure operation: no leakage, no environmental pollution and low noise occur during the crushing process.
GMP: The contact part with material is made of high quality austenitic stainless steel. The equipment is round and has no dead angle. It adopts bolt-free and joint design. All of them are connected by clamps. It is easy to disassemble and install, and easy to clean.

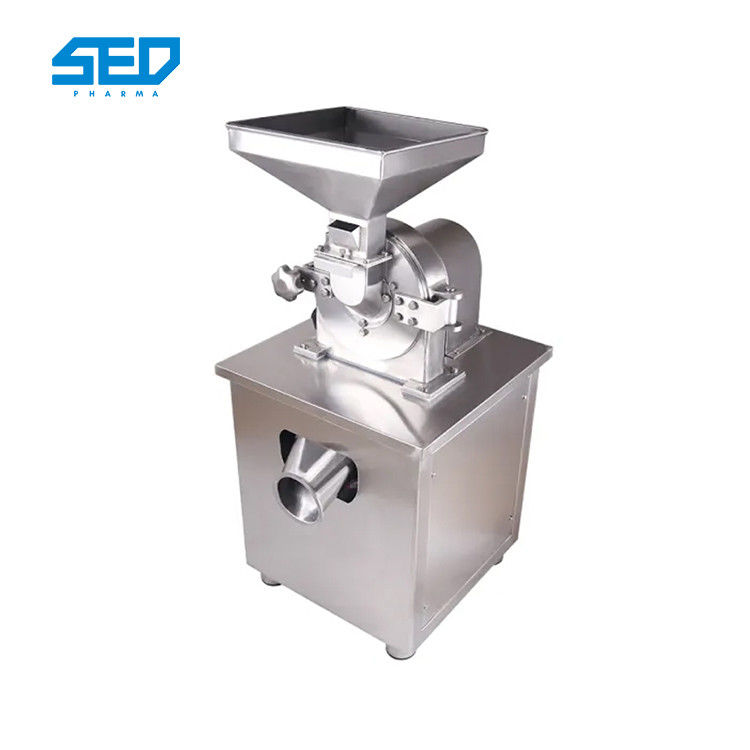

Show of Herb Grain Grinder
Application of Herb Grain Grinder
Applicable fields: Pharmaceutical, fine chemical, paper-making, paint, plastics, pesticides, solid lubricants, high-grade electric ceramics, abrasives, fine ceramics, building materials, refractories, cosmetics, food and health care products and other industries.
