Product Details:
|
| Name: | Desiccant Inserter Machine With Color Mark And Photoelectric Sensor | Production Capacity: | 10-80 Bottles Per Minute |
|---|---|---|---|
| Applicable Bottle Type: | Round, Oval, Square, Flat Square Bottles | Air Source: | 0.6Mpa |
| Rated Voltage: | 220V 50HZ | Rated Power: | 0.5KW |
| Host Weight: | 310kgs | Outline Size: | 1360*750*1950mm |
| Material: | Stainless Steel | Key Word: | Desiccant Inserter Machine |
| High Light: | High Speed Desiccant Inserter Machine,Photoelectric Sensor Desiccant Inserter Machine,Photoelectric Sensor Desiccant Inserting Machine |
||

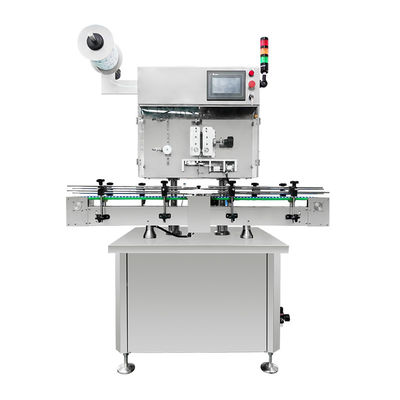

Desiccant Inserter Machine With Color Mark And Photoelectric Sensor
Product Description of Inserting Machine
Tablets and capsules are easy to get moisture, in order to improve reliability of the medicine guarantee period, it is necessary to put the desiccant into the container to keep medicine away from moisture.
This machine can automatically cut the desiccant roll and insert the desiccant bag into the container accurately and speedily. It features double-lane photoelectric positioning, intelligent feeding length controlling and automatic adjustment of accumulated length error.
The electronic controlling system ensures the machine starts when bottles reach working position and stops when bottles are insufficient automatically. The product conforms to the requirements of GMP completely.
Main Parameter of Inserting Machine
|
Product Name
|
Desiccant insert machine
|
|
Product model
|
SED-GS
|
|
Production capacity
|
10-80 bottles per minute
|
|
Applicable bottle type
|
round, oval, square, flat square bottles
|
|
Air source
|
0.6Mpa
|
|
Rated voltage
|
220V 50HZ
|
|
Rated power
|
0.5KW
|
|
Host weight
|
310kg
|
|
Outline size
|
1360*750*1950mm
|
Working Principle of Inserting Machine
Automatic desiccant inserting machine
The block bottle air cylinder on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the drying agent filling position,waiting to be filled in the drying agent.The bottle mouth faces to the clipping system correctly.
Stepping motor drives the bag conveying system,pull the drying agent bags out from the drying agent plate.
Color mark sensor tests the drying agent bags and control the length of the bags then the bags are clipped into the bottles.The conveyor belt of the conveying bottle system convey the bottles which have been filled in the drying agent to the next equipment.
At the same time,the bottles which are waiting for filling supplement to the drying agent bag filling position .
Product Show of Inserting Machine
Main Features of Inserting Machine
(1) Strong compatibility, suitable for virous of round bottles, flat bottles, square bottles with different sizes.
