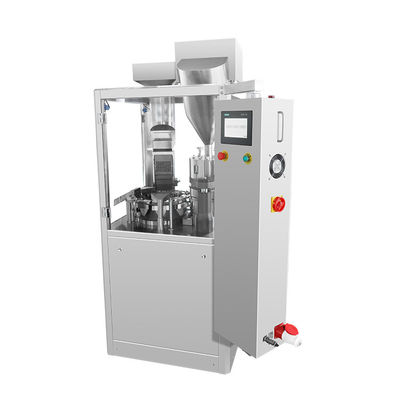

High Precision Automatic Capsule Filling Machine with 9 Die Holes and 380V 50Hz 3P Power Supply for Pharmaceutical Industry

Large Image : High Precision Automatic Capsule Filling Machine with 9 Die Holes and 380V 50Hz 3P Power Supply for Pharmaceutical Industry

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-1200J-H

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 Working days after receiving advanced payment or original L/C
Payment Terms:	T/T,L/C,MoneyGram,Cash
Supply Ability:	30 Sets Per Month

Contact Now

High Precision Automatic Capsule Filling Machine with 9 Die Holes and 380V 50Hz 3P Power Supply for Pharmaceutical Industry

Description

Name:	High Precision Pharmaceutical Industry Use Automatic Powder Capsule Filling Machine	Filling Material:	Powder, Granules
Weight:	900kg	Die Hole Number:	9
Noise:	≤75dB(A)	Power Supply:	380V 50Hz 3P
Speed:	1200 Capsules/min	Key Word:	Capsule Filling Machine，Automatic Capsule Filling Machine
Highlight:	capsule filling device , capsule filling equipment

High Precision Pharmaceutical Industry Use Automatic Powder Capsule Filling Machine

Product Description

The SED-1200J-H Automatic Capsule Filling Machine is designed for pharmaceutical and nutraceutical industries to efficiently fill empty hard gelatin capsules (sizes 00#-4#) with powders and pellets (optional). This precision equipment performs complete capsule processing including orientation, opening, precise powder filling, and automatic capsule closing.

Technical Specifications

Parameter	Specification
Model	SED-1200J-H
Capacity	1200 capsules/min
Filling Material	Powder, Granules
Die Hole Number	9
Power Supply	380V 50Hz 3P
Total Power	5.57KW
Capsule Size	00#-4#
Filling Variation	±3% - ±4%
Noise Level	≤75dB(A)
Qualified Rate	≥99.5%
Dimensions (L×W×H)	1020mm × 860mm × 1970mm
Weight	900kg

Key Features

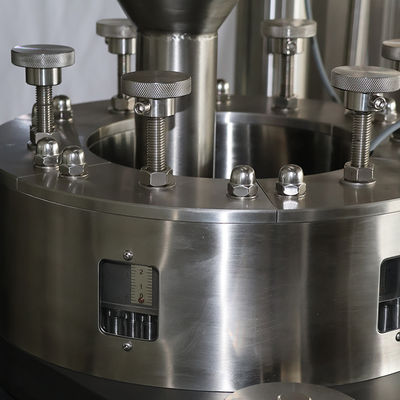

Enhanced mold turntable design with Japanese linear bearings for superior accuracy and extended service life
Underslung cam and pressure atomizing oil pump design reduces wear and prolongs component durability
Integrated column and chassis design prevents filling seat shifting for more stable and accurate feeding
Three-dimensional adjustment based on dosage plate lower plane ensures uniform gaps for precise filling and easy cleaning

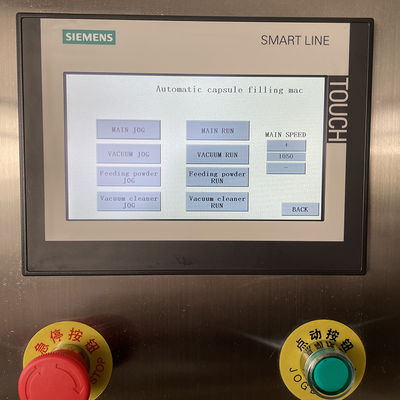

Touch screen interface with automatic alarm system for material/capsule shortages or channel failures
Real-time measurement display for each capsule and cumulative output tracking

Applications

This automatic capsule filling machine is ideal for pharmaceutical manufacturing, nutraceutical production, chemical processing (powders, pills, granules), as well as vitamin supplements, food products, and veterinary medicines.
