Pin Cyclone Dedusting Grinding Machine with 20-150 Mesh Fineness 4500 RPM and 4 kW Crush Power

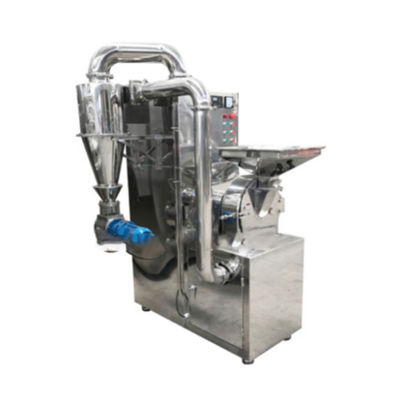

Large Image : Pin Cyclone Dedusting Grinding Machine with 20-150 Mesh Fineness 4500 RPM and 4 kW Crush Power

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-150CFS-H

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35-45 days after receiving the deposit
Payment Terms:	T/T,L/C,MoneyGram,Cash
Supply Ability:	10 Sets per month

Contact Now

Pin Cyclone Dedusting Grinding Machine with 20-150 Mesh Fineness 4500 RPM and 4 kW Crush Power

Description

Name:	Pin Cyclone Dedusting Grinding Machine Food Pharmaceutical Grinder	Capacity（kg/h）:	20-150
Main Speed (r/min):	4500	Feed Size (mm):	6
Discharge Size（mesh）:	20-150	Crush Power (kw):	4
Fan Power(kw):	2.2	Key Word:	Spice Grinder Machine
Highlight:	pharma process equipment , equipment for pharmaceutical manufacturing

Pin Cyclone Dedusting Grinding Machine

Food & Pharmaceutical Grinder

Product Description

The Pin Cyclone Dedusting & Grinding Machine represents the latest generation of grinding technology, meticulously engineered based on extensive crushing experience. This advanced machine is specifically designed for processing low-hardness materials across various industries including chemicals, dyes, additives, feed, food, medicine, and non-metallic minerals, with adjustable fineness ranging from 20-120 mesh.

Key Advantages

High production capacity with fine grain output
Low noise operation with energy-efficient performance
Simple maintenance and easy installation
Exceptional performance with oily, viscous, heat-sensitive, and fibrous materials
GMP-compliant design with full stainless steel construction

Working Principle

The machine utilizes a high-speed rotating tooth disc system with fixed knife impact and shear grinding action for optimal crushing. The generated strong airflow simultaneously removes heat from the crushing chamber and transports finished product through the sieve. Crushing fineness is adjustable by changing sieve specifications.

Material processing occurs through the combined action of impact and grinding between active and fixed fluted discs, along with material-to-material impact. Processed materials are collected via centrifugal force while dust is efficiently filtered and recycled through the integrated dust collection system.

Technical Specifications

Model	SED-150CFS-H
Capacity (kg/h)	20-150
Main Speed (r/min)	4500
Feed Size (mm)	6
Discharge Size (mesh)	20-150
Crush Power (kw)	4
Fan Power (kw)	2.2
Discharge Motor (kw)	0.75
Weight (kg)	350
Dimensions (mm)	1000×800×1600

Distinctive Features

Enhanced grinding performance: Powerful crushing ability with low energy consumption and fine particle output
Optimized airflow system: High-strength turbine-generated wind pressure increases capacity while preventing material deposition and screen clogging
Superior fiber processing: Reinforced cutting mechanism excels at fibrous material processing
Durable screen system: Plug-in type screen design offers easy installation, reliable positioning, and extended service life
Quiet operation: Internal motor placement reduces noise and improves stability
