|Name:||SED-8S 20-30 Bottles Per Minute Channel Stainless Steel Capsule Counting Machine Automatic Counting Machine||Item Name:||SED-8S 20-30 Bottles Per Minute Channel Stainless Steel Capsule Counting Machine|
|Hopper Volume:||40L||Filling Quantity:||2-9999 Pcs/bottle(adjustable)|
|Counting Speed:||20-30 Bottles Per Minute||Bottle Diamater:||30-75mm|
electronic pill counter,
pill counter machine

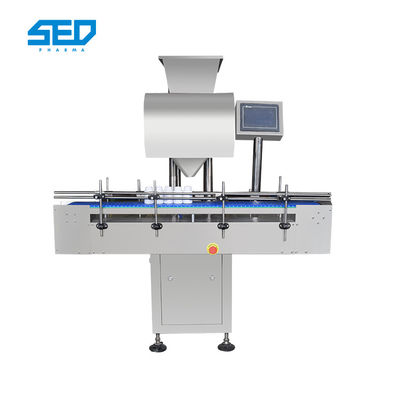

SED-8S 20-30 Bottles Per Minute Channel Stainless Steel Capsule Counting Machine
Working Principle of Capsule Counting Machine
The bottle blocking of bottle feeding mechanism‘s track stand bottle filling position and wait fill from the last equipment.Drugs through the corrugated plate vibration,orderly into drug storehouse.
And the drug storehouse is equipped with photoelectric sensors,the drug fall into the drug storehouse were putted into bottle by photoelectric sensor quantitative count.
Detailed Parameters of Capsule Counting Machine
|0-5# capsules, soft gels, ф3.5-22 mm normal tablets, ф3.5-22 mm pills special shape tablets, coating tablets,and some other solid granules|
|9000-40500 Bottles / Shift|
Capacity is subject to the type and size of the bottles and raw materials, as well as the quantity filled per bottle.
*BPM=Bottles per minute
|Working Range||Adjustable from 2-9999 per bottle|
|Power supply and consumption||220V/50HZ 0.5kw|
|Filling error||≤ 2‰ bottles|
|Pressed Air Supply||0.6 Mpa|
Feature of Capsule Counting Machine
1. Widely applicable, used for tablets (including special shaped tablets), capsules,gels (including special shaped gels, transparent gels and opaque gels) pills and most solid granules.
2. Patent: Bottle separation and switching device, will not damage the pills.
3. Anti-dust, equipped anti-dust sensor technology. Highly stable in heavy dusty situation, works with accuracy.
4. Proprietary right technology for anti-disturbance: The counting signal will be deal in special advanced way, and communicate with the control system in high-speed and avoid any kind of disturbance.
5. Patent: Half vibration-filling hopper, to avoid pills from getting jammed.Especially for the smaller mouth bottle conditions.
Product Show of Capsule Counting Machine
Application of Capsule Counting Machine
