Product Details:
|
| Name: | Automatic 16 Passageway Soft Capsule Counting Machine Convenient Maintenance | Model: | SED-16 |
|---|---|---|---|
| Applicable Bottle Shape: | 10-500ml Round,square Plastic Bottle | Production Capacity: | 40~60 Bottles Per Minute(It Depends On The Bottle Size,filling Quantity And The Tablet Size) |
| The Setting Range Of Bottling Volume: | 2-9999 | Power Supply: | AC220V 50Hz 0.6kw |
| Accuracy Rate: | >99.5%(better Than The Industrial Standard ) | Air Source: | 0.6 Mpa |
| Material: | Stainless Steel | Key Word: | Capsule Counting Machine Tablet Bottling Machine |
| High Light: | electronic pill counter,tablet counting device |
||
Automatic 16 Passageway Soft Capsule Counting Machine Convenient Maintenance
Product Description of Tablet Counter Machine
Bottle mechanism: the bottle stopper on the bottle feeding track will stop the bottles from the previous equipment in the filling position and wait for filling. The medicine enters the medicine storehouse orderly by the vibration of the corrugated plate.
A counting photoelectric sensor is installed on the medicine storehouse, and the medicine falling into the medicine storehouse is loaded into the bottle at the bottling position after quantitative counting by the photoelectric counting sensor.
Technical Parameters of Tablet Counter Machine
| Model | TJ-12 |
| Applicable bottle shape | 10-500ml round,square plastic bottle |
| Filling material | Φ0~5#capsule,soft capsule,Φ5.5~20compressed tablet,special-shaped tablet,sugarcoated tablet,Φ3~12pill |
| Production capacity | 40~60 bottles per minute(It depends on the bottle size,filling quantity and the tablet size) |
| The setting range of bottling volume | 2-9999 |
| Power supply | AC220V 50Hz 0.6kw |
| Accuracy rate | >99.5%(better than the industrial standard ) |
| Air pressure | 0.6Mpa |
| Overall dimension | 1560*1530*1700mm |
| Weight | 480kg |
Trait of Tablet Counter Machine
1.Strong compatibility:
The electronic counting machine can count bottles and various kinds of solid preparation or solid granules including tablets, heteroideus tablets, capsules, soft capsules (both transparent and non-transparent), pills etc.
2.Vibration cutting:
12 channel vibrators under homogeneous materials, unique patent agencies for steady outputting without damage.
3.Dust-proof:
The capsule counting machine adopts the anti dust photoelectric sensing technology exclusively developed by Tianjiu, which can also work stably under high dust circumstances.
The dust collection box can reduce dust pollution. (Optional)
4.Correct counting:
With automatic photoelectric sensor, the error of counting is far beyond national standard. The photoelectric sensor can check automatically if there's no bottle and stops automatically.
The filling spout is specially structured to prevent the material from blocking. Even small bottles can be filled quickly. (Optional)
5.High intelligence:
Various alarm and control functions like no bottle no counting, self checking and auto eliminating of abnormal bottles and tablets;
6.Easy operation:
The electronic counting machine is intellectualized designed. All kinds of operation data can be set freely. It can store 10 groups of parameters for use.
7.Convenient maintenance:
After simple training, the capsule counting machine can be operated easily. It is convenient to disassemble, clean and change components without any extra tools.

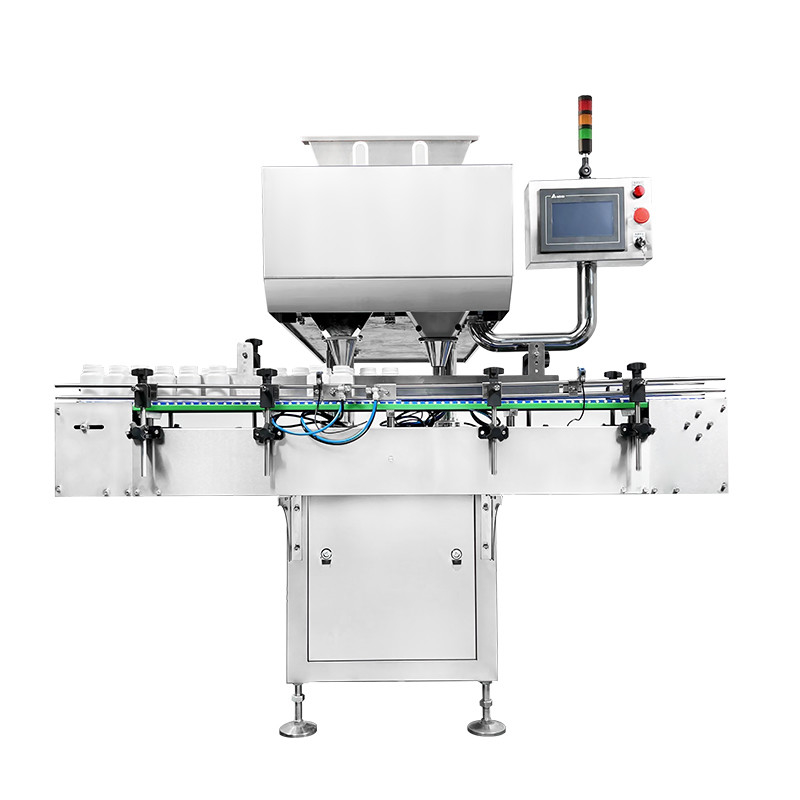

Machine Show of Tablet Counter Machine
Application of Tablet Counter Machine
it can count and pack of solid particles, such as tablets, capsules (transparent or non-transparent hard capsules, soft capsules), pills from 3 to 20mm wide into bottles,boxes and bags. It meets the requirements of GMP, suitable for research institutions, hospitals, small and medium sized enterprises and health care product plants.
