Product Details:
|
| Name: | Electronic Semi Automatic Medicine Capsule Counting Machine | Counting Plate Diameter: | 400mm |
|---|---|---|---|
| Number Of Counting Holes: | 5~100 | Productivity: | 10~30 Bottle/min |
| Main Motor Power: | 0.6KW | Vibration Motor Power: | 120w |
| Suitable: | Capusle, Tablet ,Pill (Need To Replace The Number Of Discs) | Voltage: | 220V 50/Hz |
| Material: | Stainless Steel | Key Word: | Capsule Counting Machine Tablet Bottling Machine |
| High Light: | electronic pill counter,tablet counting device |
||

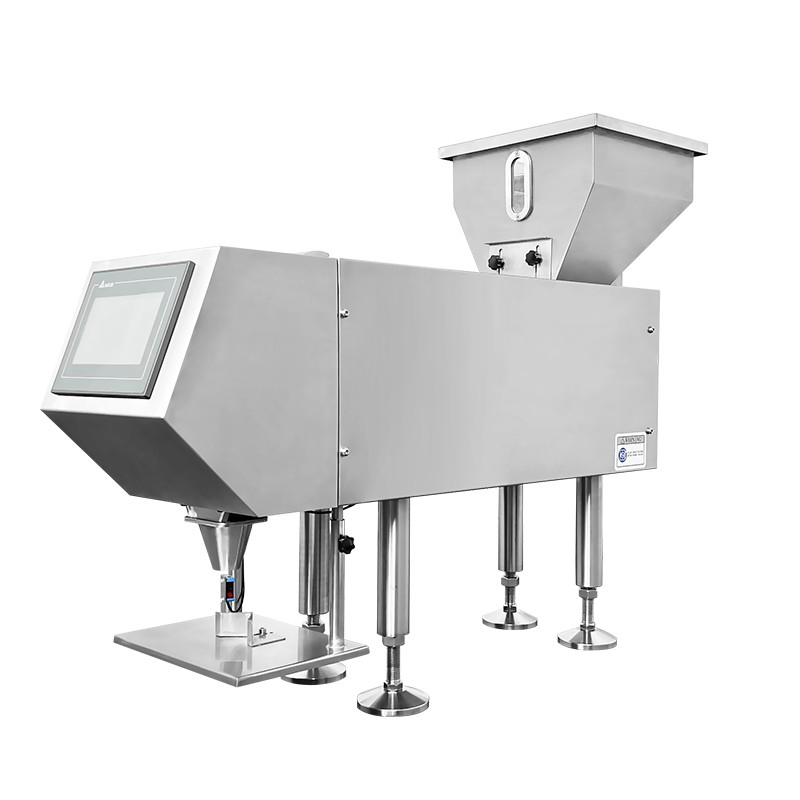

Electronic Semi Automatic Medicine Capsule Counting Machine
Product Description of Tablet Counter Machine
This machine has been designed and developed to count & fill different shapes or size of products accurately like soft gel capsules, hard capsules, tablets, sugar coating, and film coating tablets, pills, herb medicine or similar products into containers or vials.
The machine can be adjusted to count capsules or tablets between 1-9999 pcs per bottle without changing spare parts.
Product Parameters of Tablet Counter Machine
| Counting plate diameter | 400mm |
| Number of counting holes | 5~100 |
| Productivity | 10~30 bottle/min |
| Main motor power | 0.6Kw |
| Vibration motor power | 120w |
| Suitable | Capusle, Tablet ,Pill (Need to replace the number of discs) |
| Voltage | 220V 50Hz |
| Weight | 60Kg |
| Dimensions | 1090*280*840mm |
Features of Tablet Counter Machine
1. The number of particles can be set arbitrarily from 0-9999.
2. Vibrating feeding and rotary cutting design, the feeding speed can be adjusted infinitely for manual bottle placement.
3. The inside of the machine is equipped with a dust suction channel, which can be connected to a vacuum cleaner to absorb dust.
4. Photoelectric sensing technology, the particle precision is over 99.7%.
5. No need to change the mold, the tablets and capsules can be adjusted at will.
6. GMP compliant.
Working Principle of Tablet Counter Machine
The core working principle of the electronic particle counting machine: using the photoelectric effect principle, when the medicine particles fall, the signal generated by the photoelectric sensor is generated. Operation process: put the bottle (can be
connected to the assembly line) -> bottle conveying (automatic realization of the equipment) -> bottle positioning -> several pieces of filling -> intermittently change the bottle to repeat the above actions.
Machine Show of Tablet Counter Machine
Application of Tablet Counter Machine
Electronic Counting Machine is mainly suitable for medicine, industry, chemical industry, food and other industries. It can be widely used for counting and bottling solid preparations, such as pills, sugar-coated tablets, plain tablets, soft and hard capsules and other shapes of medicine granules.
