Product Details:
|
| Name: | Stainless Steel Automatic Electronic Capsule Counting & Bottling Production Line | Warranty: | 1 Yesr |
|---|---|---|---|
| Material: | Stainless Steel | Hopper Volume: | 30L |
| Capacity: | 10-40bottles/min | Filling Quantity: | 2-9999pcs/bottle (adjustable) |
| Bottle Size: | Diameter: 30-100mm Height:40-180mm | Compressed Air: | Compressed Air |
| Highlight: | tablet counting device,pill counter machine |
||

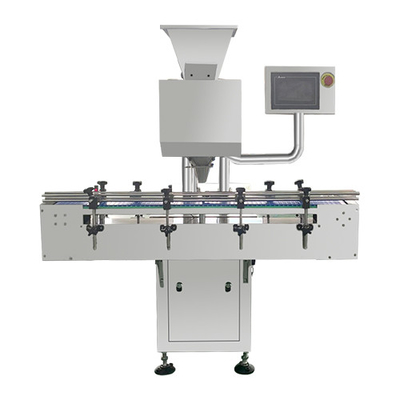

Stainless Steel Automatic Electronic Capsule Counting & Bottling Production Line
Main Features:
1. Wide applicability. With our original anti-dust technology, it can be used for tablets( including abnormal tablets), capsules, gels( including abnormal gels,transparent gels and opaque gels) pearls and most kind of tabloids.
2. High-intelligentce: intelligent design of each machine with interactive operating multi-language panel. 3. 3. Can save 10~20 kinds of different operating parameters and easy to load for different products. Self-diagnose ,displays errors and make alarms. Well cooperation between each machine and in the whole line.
4. High efficiency. Take purposed to operate, easy to operate, to adjust, to clean and to maintain.
5. Low working cost, low maintain cost. 3 workers will be enough to operate.
Technical Parameters:
| Product Name | Automatic counting machine |
| Model Name | SED-8S |
| Application |
|
| Hopper Volume | 30L |
| Capacity | 10-40bottles (80-100 pcs/bottle)/min |
| Filling Quantity | 2-9999pcs/bottle (adjustable) |
| Bottle Size |
Diameter: 30-100mm |
| Counting Size | Pills with diameter of 22mm or less are compatible with 000-5 capsules soft capsules with diameters of 3.5mm-22mm plain tablets special-shaped tablets sugar-coated tablets |
| Compressed air | 0.6Mpa 3.5L/min |
| Power | 220V/50HZ 0.6KW |
| Machine Weight | 320kg |
| Machine Size L × W × H (mm) | 1360*1530*1700mm |
| Product name | Bottle unscrambler |
| Model name | SED-80LP |
| Application | Plastic round bottles |
| Suitable bottle size |
Bottle diameter 20-100mm |
| Capacity | 30-100 Bottles per minute |
| Power supply | AC220V 50HZ 0.25KW |
| Dimension | 1350×1000×1270mm |
| Weight | 230kgs |
| Product name | Desiccant inserting machine |
| Model name | SED-GS |
| Application | All kinds of round bottles, square bottles, special-shaped bottles |
| Suitable bottle size |
Bottle diameter 20-100mm |
|
Suitable desiccant bag |
0.5g: 17*32mm |
| Capacity | 10-70 Bottles per minute |
| Power supply | AC220V 50HZ 0.5KW |
| Air consumption | 0.6Mpa |
| Dimension | 1360×750×1950mm |
| Weight | 310kgs |
| Product name | Capping machine |
| Model name | SED-CG |
| Application | Plastic caps such as normal cap, cap with protective ring, CRC cap, Flip cap, etc. |
| Suitable bottle size |
Bottle diameter 20-80mm |
| Suitable cap size |
Cap diameter 20-76mm |
| Capacity | 20-100 Bottles per minute |
| Power supply | AC220V 50HZ 1.8KW |
| Air consumption | 0.6Mpa 3L/min |
| Dimension | 2280×1080×1940mm |
| Weight | 510kgs |
| Product name | Sealing machine |
| Model name | SED-LF |
| Bottle specification |
Bottle neck: 20-80mm(40-90mm can be customized) |
| Output | 50-150bottles/min |
| Power Supply | 220V 50/60Hz 4KW |
| Overall Dimensions | 1360*750*1210mm |
| Weight | 130kgs |
| Product name | Labeling machine |
| Model name | SED-YDT |
| Driver Motor: | Stepping motor |
| Application |
Round bottles |
| Running speed: | 10-100 bottles/min |
| Label size | Width ＜110mm |
| Weight: | 200kg |
| Power supply: | AC220V 60HZ 0.15kw |
| Air consumption | 0.6Mpa |
| Overall Size: | 1760X950X1400 |
Working Principle :
SED-8SX Electronic Pill Counting Line is the production line for tablets,capsules,soft gelatin capsules counting.It consists bottle turn table,electronic counting machine,desiccant inserting machine,cotton inserting machine,induction sealing machine,labeling machine,etc.
The machines can be modified according to your requirements.
