Automatic 16 Passageway Capsule Counting Machine 40-60 Bottles/Min

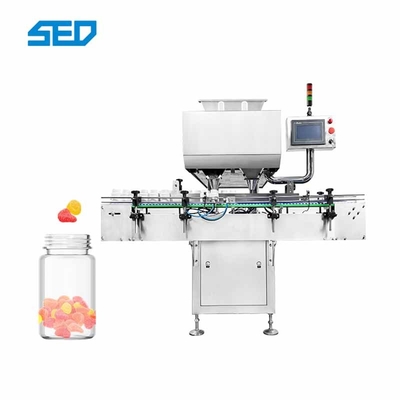

Large Image : Automatic 16 Passageway Capsule Counting Machine 40-60 Bottles/Min

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-16S

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 days after receiving the deposit
Payment Terms:	T/T,L/C,MoneyGram,Cash
Supply Ability:	30 Sets Per Month

Contact Now

Automatic 16 Passageway Capsule Counting Machine 40-60 Bottles/Min

Description

Name:	Automatic 16 Passageway Soft Capsule Counting Machine Convenient Maintenance	Model:	SED-16
Applicable Bottle Shape:	10-500ml Round,square Plastic Bottle	Production Capacity:	40~60 Bottles Per Minute(It Depends On The Bottle Size,filling Quantity And The Tablet Size)
The Setting Range Of Bottling Volume:	2-9999	Power Supply:	AC220V 50Hz 0.6kw
Accuracy Rate:	>99.5%(better Than The Industrial Standard )	Air Source:	0.6 Mpa
Material:	Stainless Steel	Key Word:	Capsule Counting Machine Tablet Bottling Machine
Highlight:	automatic capsule counting machine 16 passageway , capsule counting machine 40-60 bottles per minute , 16 passageway capsule counter with warranty

Automatic 16 Passageway Tablet Gummy Pill Counter Small Capsule Packing Counting Machine

Product Description

This counting machine is designed for accurately counting capsules, soft gels, tablets, chewing gum, round pills, and other solid materials. The contact parts are made of superior 304 stainless steel, meeting GMP requirements. The bottle blocking device on the conveyor belt positions bottles for filling, while material is fed through vibration and counted by photoelectric sensors before being loaded into bottles.

Technical Parameters

Model Name	SED-16S
Application	Hard capsule (000-5#) Soft Gelatin capsule Pills Chewing gum, tablet, other solid object (Diameter: 5.5-22mm)
Hopper Volume	70L
Capacity	10-70 bottles/min
Filling Quantity	2-9999pcs/bottle (adjustable)
Bottle Size	Diameter ≤50mm, Height ≤180mm
Conveyor Belt Width	114mm
Compressed Air	0.6Mpa, 3.8L/min
Voltage	220V, 50HZ Single Phase
Power	0.9KW
Weight	480kg
Overall Dimension (LWH)	156015301700mm

Key Features

3-stage adjustable vibrating platform for precise speed control of capsule count output
Strong compatibility with tablets (including special-shaped), capsules, soft capsules, and pills
16-channel vibration discharge system for smooth, damage-free material handling
Anti-dust photoelectric sensor technology for stable operation in high dust conditions
High accuracy counting with photoelectric sensor technology
Intelligent operation with multiple detection alarm control functions
Automatic detection for tilted bottles and bottle jams
User-friendly touch screen interface
No mold changes required when switching counting objects

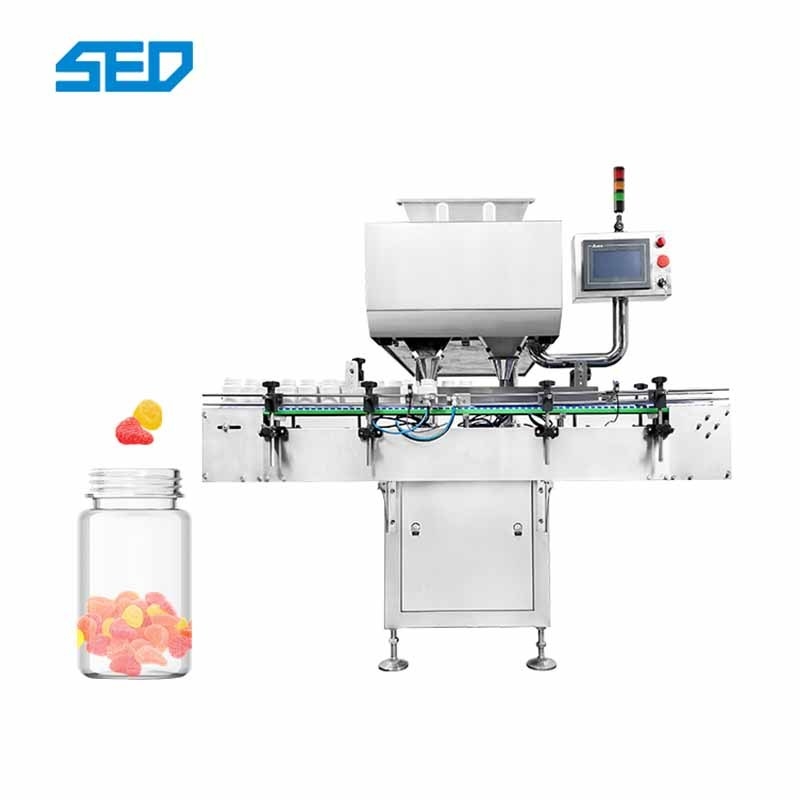

Machine Display

Applications

This machine is designed for counting and packing solid particles including tablets, capsules (transparent or non-transparent hard capsules, soft capsules), and pills (3-20mm wide) into bottles, boxes, and bags. It meets GMP requirements and is suitable for research institutions, hospitals, small and medium-sized enterprises, and healthcare product plants.
