Product Details:
|
| Name: | Automatic Drum Type Bottle Washing Machine 20-80Bottles/min | Application: | Round Bottle、Shaped Bottle |
|---|---|---|---|
| Applicable Specifications: | 10-200ml | Production Capacity: | 20-80bottles/min |
| Water Consumption And Pressure Consumption: | 0.6-1t/h;0.25Mpa | Machine Size L × W × H (mm): | 1600mm*900*1200mm |
| Machine Weight: | 300kg | Key Word: | Bottle Washing Machine |
| Highlight: | 200ml Automatic Bottle Washing Machine,Automatic Pharmaceutical Drum Bottle Washing Machine,80Bottles/min Automatic Bottle Washing Machine |
||
Automatic Drum Type Bottle Washing Machine 20-80Bottles/min
Product Overview of Washing Machine
SED-16CXP Automatic Drum Type Bottle Washing Machine is mainly suitable for bottle cleaning of round or special-shaped bottles of various materials of 10-200ml.
After the bottle is ultrasonic, washed once and washed twice, the remaining water droplets in the bottle are refined by high-pressure gas, which is called "three water and one gas" for short.
Product Parameters of Washing Machine
|
Application
|
Round bottle,Shaped bottle
|
|
Applicable specifications
|
10-200ml
|
|
Production capacity
|
20-80bottles/min
|
|
Power
|
220V
|
|
Clarity qualified rate
|
≥99.9%
|
|
Machine Size L × W × H (mm)
|
1600mm×900×1200mm
|
|
Machine Weight
|
300kg
|
Feature of Washing Machine
1.Clean air: On the basis of ultrasonic pre-washing, the equipment uses a needle tube to perform two water (one tap water, one purified water) and two air flushes (depending on specifications and cleaning requirements) on the bottle mouth.
2.Specific materials: All parts in contact with liquid on the machine are made of 316L stainless steel and non-toxic and corrosion-resistant materials.
3.Environmental sealing: All working areas are sealed with transparent plexiglass to prevent pollution from the external environment, and meet the requirements of pharmaceutical production GMP specifications and verification.

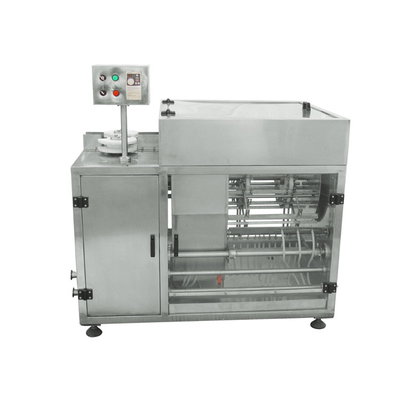

Show of Washing Machine
Application of Washing Machine
Food, Chemical, Pharmaceutical, etc.
