Product Details:
|
| Name: | Multifunction Homemade Pill 180kg/H Tablet Press Machine | Power Supply: | 380 V 50Hz |
|---|---|---|---|
| Power: | 9.5Kw | Material Of Surface: | Stainless Steel |
| Capacity: | 20--180kg/h | Weight: | 800Kg |
| Material: | Stainless Steel | Key Word: | Tablet Press Machine |
| High Light: | homemade tablet press machine,180kg/h tablet press machine,9.5Kw pill press machine |
||
Multifunction Homemade Pill 180kg/H Tablet Press Machine
Product Overview of Tablet Press Machine

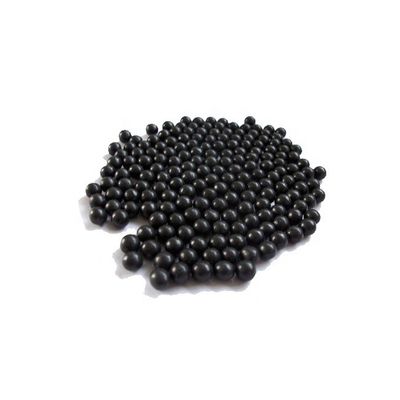

Automatic Traditional Chinese Medicine Pill Making Machine is the large-scale traditional Chinese medicine pill making machine which is the highest production efficiency machine in domestic and overseas at present. It can produce pill diameter from 3 to 12mm such as small honey pill, water honey pill, honey pill, condensed pill and starched pill.
With special design and fabrication processing, it can also produce the ceramic pill, molecular sieve pill in chemical industry and various food pill, flour pill, etc. This machine is the ideal preferred equipment for different Pharmaceutical manufacturers, hospital preparation room and Food manufacturers
Product Parameters of Tablet Press Machine
|
Dimension(L×W×H)
|
1970×965×1454mm
|
|
Power supply
|
380 V 50Hz
|
|
Power
|
9.5 Kw
|
|
Compressed air
|
Non
|
|
Water consumption
|
Little L/min
|
|
Cooling water
|
Non
|
|
Temperature requirement
|
0-40 ℃
|
|
Material of surface
|
Stainless steel
|
|
Operating size(L×W×H)
|
3900×3000×2000mm
|
|
Current
|
25 A
|
|
Main motor
|
7.5kw
|
|
Air consumption
|
Non
|
|
Pure water consumption
|
Little L/min
|
|
Water discharge requirement
|
10L/min
|
|
Moisture requirement
|
(For cleaning)
|
|
Material of contact parts
|
≤80 %
|
|
Capacity
|
20--180kg/h
|
|
Weight
|
800Kg
|
Feature of Tablet Press Machine
1. This machine is with reasonable structure, stable function, low noise, simple operation, convenience maintain and clean and high production efficiency. The whole is stainless steel and in accordance with GMP authentication requirements.
2. Using import frequency converter, automaticity is high.
3. Pelletizing cutting wheel uses titanium alloy material. It is easy handling, no pollution and long service life. With special fabrication processing, pills which is manufactured by this machine is smooth,bright and round.
4. The pill forms at one time with uniform size. The rate of finished products is more than 98%. Disintegration is good, in line with national pharmacopoeia standards.
Show of Tablet Press Machine
Application of Tablet Press Machine
Mainly used in tablet production in the pharmaceutical industry, as well as in chemical, food, electronics and other industries.
