20kg/H Blower 2.2KW Grinding Pulverizer Machine

20kg/H Blower 2.2KW Grinding Pulverizer Machine
20kg/H Blower 2.2KW Grinding Pulverizer Machine 20kg/H Blower 2.2KW Grinding Pulverizer Machine

Large Image :  20kg/H Blower 2.2KW Grinding Pulverizer Machine

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-CFS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50-60 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

20kg/H Blower 2.2KW Grinding Pulverizer Machine

Description
Name: 20kg/H Blower 2.2KW Grinding Pulverizer Machine Production Capacity (kg/h): 20-150
Weight (KG):: 1200 KG Outline Dimension: LxWxH (mm)4200x1200x2700
Power(W):: 2.2KW Voltage:: 380V 50hz
Material: Stainless Steel Key Word: Grinding Pulverizer Machine
High Light:

blower grinding pulverizer machine

,

20kg/h grinding pulverizer machine

,

2.2kw grinding pulverizer machine

20kg/H Blower 2.2KW Grinding Pulverizer Machine


Product Overview of Grinding Pulverizer Machine



Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there.

All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.

Product Parameters of Grinding Pulverizer Machine
Type SED-15CFS
Production capacity (kg/h) 20-150
Main-shaft speed (r/min) 4800
feeding granularity (mm) 10
Smash fineness(mesh) 80-320
Weight(kgs) 1200
Power 22
Outline dimension L×W×H (mm) 4200x1200x2700







Feature of Grinding Pulverizer Machine




1. Whole Body Stainless Steel up to GMP Standard.



2.The machine is faster than other same power machine.



3.The small machine is easy to operate and repaired.

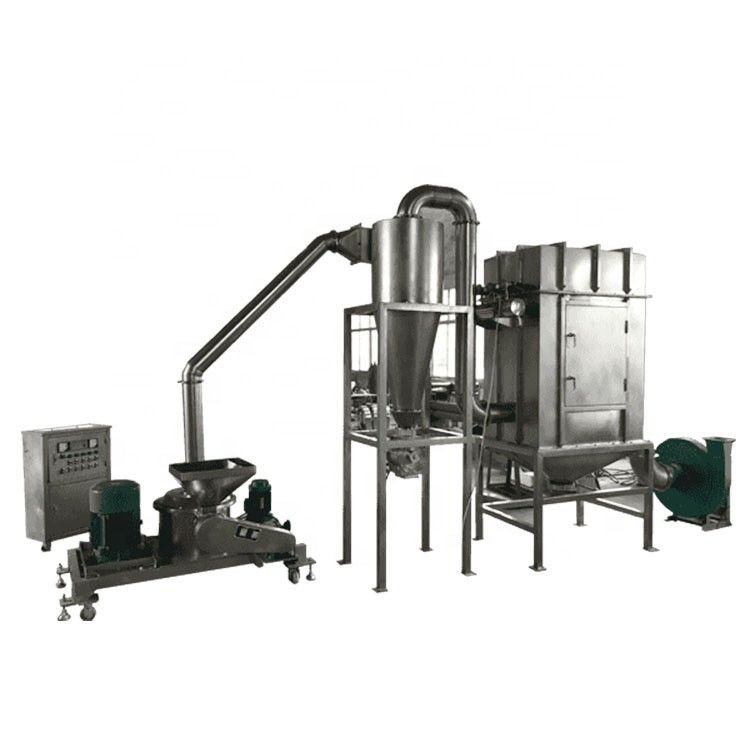

Show of Grinding Pulverizer Machine​

20kg/H Blower 2.2KW Grinding Pulverizer Machine 0

Application of Grinding Pulverizer Machine



This machine is suitable for material crushing in pharmaceutical, chemical, food and other industries. The crushing chamber adopts a wind wheel type high-speed rotating cutter.



The air volume of the machine cavity itself is large, and the machine cavity is easy to heat. It has the advantages of smoothness, easy disassembly and cleaning, low noise and good crushing effect.

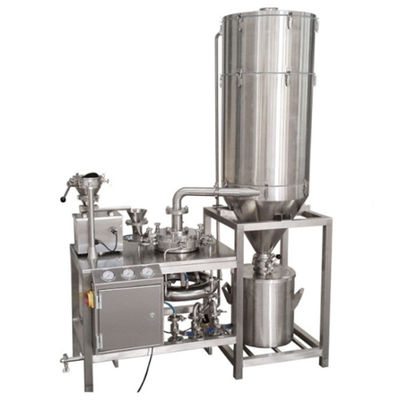

20kg/H Blower 2.2KW Grinding Pulverizer Machine 1

20kg/H Blower 2.2KW Grinding Pulverizer Machine 220kg/H Blower 2.2KW Grinding Pulverizer Machine 320kg/H Blower 2.2KW Grinding Pulverizer Machine 420kg/H Blower 2.2KW Grinding Pulverizer Machine 520kg/H Blower 2.2KW Grinding Pulverizer Machine 6
