Full Automatic Laboratory Suppository Filling And Sealing Machine

Full Automatic Laboratory Suppository Filling And Sealing Machine
Full Automatic Laboratory Suppository Filling And Sealing Machine Full Automatic Laboratory Suppository Filling And Sealing Machine Full Automatic Laboratory Suppository Filling And Sealing Machine Full Automatic Laboratory Suppository Filling And Sealing Machine

Large Image :  Full Automatic Laboratory Suppository Filling And Sealing Machine

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-1SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50-60 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

Full Automatic Laboratory Suppository Filling And Sealing Machine

Description
Name: Full Automatic Laboratory Suppository Filling And Sealing Machine Commodity: Suppository Line
Model: SED-1SJ Capacity: 1200-2000 Pcs/H
Volume: 0.5-5g Deviation: <±2%
Film: PVC\PE (thickness0.15mm) Tank Volume: 20L
Overall Dimensions: 2300X900X1800mm Working Power: 3 Phase 380V
Material: Stainless Steel Key Word: Suppository Filling Machine
High Light:

suppository filling and sealing machine

,

suppository filling machine

,

laboratory suppository filling machine

Full Automatic Laboratory Suppository Filling And Sealing Machine



Product Description of Suppository Filling Machine



SED-1SJ type automatic suppository production line is suitable for the production of special shape such as bullet head, torpedo shape and duck bill, which satisfies the production of various suppositories. (according to the specifications of the mould according to the requirements of the customer)



The equipment adopts PLC programmable control and man-machine interface operation, simple operation, convenient adjustment, accurate temperature control and smooth operation.



The temperature sensor and microcomputer control system are used to achieve high precision thermostatic control.



The storage tanks are made of 316L stainless steel, which is suitable for heat preservation, heating and accurate temperature control. The tank is equipped with a mixing device to ensure the uniformity of the liquid at any time.



The reservoir can be connected to the bottling organ through the pipe, and the liquid can be kept in circulation, ensuring the liquid of the liquid and satisfying the filling demand.



Adopting the insertion type line filling mechanism, the position is accurate, no drops, no wall. A single dose of 0.5 to 5ml, the filling error plus or minus 2%.



Continuous cooling pattern, the suppository casing can be fully cooled and the liquid solid conversion is achieved.



Continuous tape, continuous sealing, sealing process batch number self-printing; The sealing should be well sealed, with neat appearance and no less than 98% good quality.



Product Parameters of Suppository Filling Machine



Commodity
Suppository Line
Model
SED-1SJ
Capacity
1200-2000 pcs/H
Volume
0.5-5g
Deviation
<±2%
Film
PVCPE (thickness0.15mm)
Tank volume
20L
Working air pressure
≥0.6Mpa
Air consumption/minute
1.5 m3
Water Consumption/H
50kg (Recycling)
Working power
3 Phase 380V
Total power
4.5KW
Suitable suppositories
Bullet shape,Torpedo shape, Duck mouth and other shapes
Overall dimensions
2300X900X1800mm
Suitable material
Synthetic fatty acid glycerides glycerin gelatin polyethylene glycol (peg) and so on





Advantages of Suppository Filling Machine​


suppository filling automatic production line has a stable and efficient preheating mold, heated mold, molding, belting, canned, frozen, sealing bolt all production processes such as complete system process, grain production capacity of 1200-2000 / hour.



Processes:



It will be rolled up (PVC, PVC/PE) into the forming area by the preheated mold, the heating die, the mold, the blow molding and the bubble forming. The triangle-knife cutting edge (cutting edge) and the dotted line.



Filling:

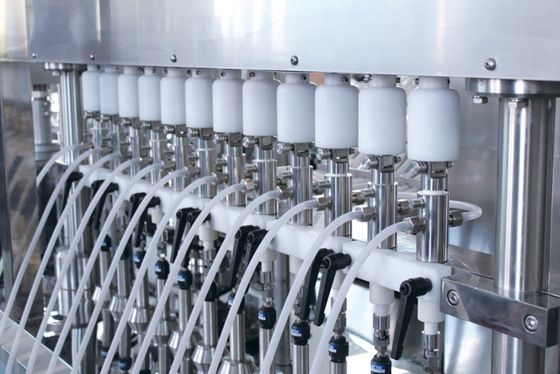

One-time molding suppository for embedded type filling, filling accuracy + / - 2%, filling material barrel has electric heating insulation system, the top is equipped with a uniform mixing machine in order to make drugs, drug by high precision in VAT filling pump into the filling head, a drug through the other end of the cycle to rest after filling material barrel filling again next time.



Cooling:



The whole irrigation and drainage install suppository into cooling box, external cooling box is equipped with water chiller, cooling air through the condenser cooling box for cooling cooling box suppository.



Sealing and shearing



Be cooled solid suppository into the sealing area: preheating mold (hot) and the sealing mould (sealing) - code mould (lot number) - hob (clip above) - > count shear.



Products Show of Suppository Filling Machine​

Full Automatic Laboratory Suppository Filling And Sealing Machine 0Full Automatic Laboratory Suppository Filling And Sealing Machine 1Full Automatic Laboratory Suppository Filling And Sealing Machine 2
