12mm Perfume Packing Plastic Ampoule Filling And Sealing Machine

12mm Perfume Packing Plastic Ampoule Filling And Sealing Machine

  • High Light

    12mm plastic ampoule filling machine

    ,

    plastic ampoule filling machine

    ,

    plastic ampoule filling and sealing machine

  • Name
    12mm Perfume Packing Plastic Ampoule Filling And Sealing Machine
  • Max Forming Depth
    12mm
  • Cutting Frequency
    0-25 Times
  • Packaging Material
    PVC/PE(0.2-0.4)*120mm
  • Capacity Volume
    1-20ml
  • Total Power
    4.5kw
  • Voltage
    220V-380V/50HZ
  • Weight
    750kgs
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-118SP
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    50-60 Days after receiving the deposit
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    30 Sets per month

12mm Perfume Packing Plastic Ampoule Filling And Sealing Machine

12mm Perfume Packing Plastic Ampoule Filling And Sealing Machine

Machine Parameters of Liquid Filling Machine​

Max Forming Depth
12mm
Cutting Frequency
0-25 times
Packaging Material
PVC/PE(0.2-0.4)*120mm
Capacity volume
1-20ml
Total Power
4.5kw
Voltage
220V-380V/50HZ
Weight
750kgs
Dimension
2300*850*1500mm



Product Overview of Liquid Filling Machine



This is the most advanced Suppository Filling and Sealing Machine in China. The machine is suitable for any kinds of material, such as PVC laminated by PE, PVC laminated by LDPE. It can be filled by Liquid, Honey, Semi Liquid, etc.

This machine is PLC Control and adopts easy changeable Button Panel for operating. The machine is stepless running, one minute for 1-50cutting. It is Suitable for Pharmacy Factory, Hospital, Lad, Etc.


Feature of Liquid Filling Machine​


Controlled by PLC, the frequency conversion in finitely variable speed.



All the process such as spreading roll, ampoule bottle forming, filling, sealing, printing serial numbers, cutting, etc are controlled by programming.



The filling head doesn't drop, leak, produce bubbles and spill over



Meet GMP Standard

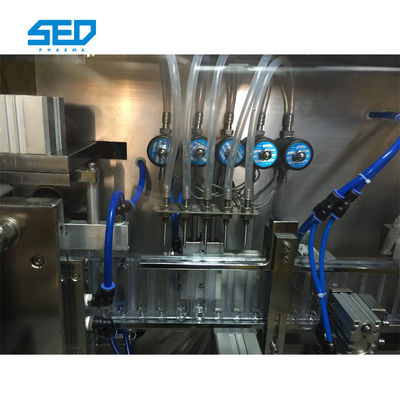

Product Show of Liquid Filling Machine

12mm Perfume Packing Plastic Ampoule Filling And Sealing Machine 0

Application of Liquid Filling Machine



This machine is a compact liquid filling and sealing machine, suitable for small batch filling of different products, widely used in the filling of oral liquids, perfumes, liquids, essential oils, olive oil, health care products, etc. , pesticides, cosmetics, food and supplements.

12mm Perfume Packing Plastic Ampoule Filling And Sealing Machine 1

12mm Perfume Packing Plastic Ampoule Filling And Sealing Machine 212mm Perfume Packing Plastic Ampoule Filling And Sealing Machine 312mm Perfume Packing Plastic Ampoule Filling And Sealing Machine 412mm Perfume Packing Plastic Ampoule Filling And Sealing Machine 512mm Perfume Packing Plastic Ampoule Filling And Sealing Machine 6
