Product Details:
|
| Name: | 500kg Capsule 100pcs/Bottle Tablet Counting Machine | Size Of Bottles: | 20-300ml |
|---|---|---|---|
| Output(Tablet): | 30-60 Bottles/min (100pcs/bottle) | Output(Capsule): | 30-50 Bottles/min (60 Pcs/bottle) |
| Machine Weight: | 500kg | Machine Size L × W × H (mm): | 1650×680×1580 |
| Material: | Stainless Steel | Key Word: | Tablet Counting Machine |
| Highlight: | 500kg capsule counting machine,500kg tablet counting machine,100pcs/bottle Tablet Counting Machine |
||

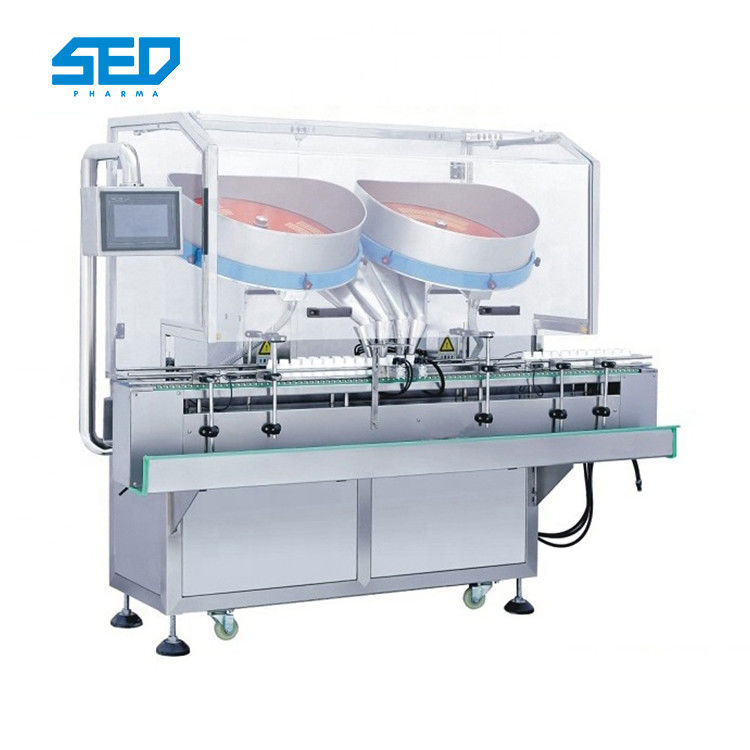

500kg Capsule 100pcs/Bottle Tablet Counting Machine
Product Overview of Tablet Counter
The unique counting template ensures that the machine can count and fill regular tablets and pills but also irregular tablets and capsules.
Eccentricity sifting device our company designs and develops independently is a national patented product, which overcomes the problems other companies meet: gear-driven device is high noise, easily damaged and difficult to adjust.
The machine is super-mute and variable frequency controlled. It is controlled through PLC based system, so it runs reliably.
The machine makes use of international brand photoelectric controls for inspecting if lacking bottle and if bottle jammed to realize prompt stop once malfunction occurs. And it also has protective functions against over-load, over-current, under-voltage, over-voltage, etc.
Materials in contact with medicament conform to requirements of GMP.
Product Parameters of Tablet Counter
|
Model
|
SED-4MS
|
|
Size of medicament
|
Tablet:φ5-12mm Capsule:00#-5# all kinds of soft capsule
|
|
Size of Bottles
|
20-300ml
|
|
Output(Tablet)
|
30-60 bottles/min (100 pcs/bottle)
|
|
Output(Capsule)
|
30-50 bottles/min (60 pcs/bottle)
|
|
Machine Weight
|
500kg
|
|
Machine Size L × W × H (mm)
|
1650×680×1580
|
Feature of Tablet Counter
Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;
Vibratory cutting drugs do not damage;
A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;
Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;
Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.
Low prices, especially for small-volume, variety and more manufacturers use.
Control chip imported to the United States, photoelectric sensors for Taiwan's imports.
Show of Tablet Counter
Application of Tablet Counter
This machine can be widely used for fast counting and bottling of various shapes and sizes of tablets, capsules, pills and other drugs or food, health care products and other materials.
The speed and accuracy of counting and bottling have reached the advanced level of similar products at home and abroad.
