Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment

Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment
Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment

Large Image :  Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-30ZB
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50-60 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment

Description
Name: Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment Packing Range: Length: 12-40mm, Width: 12-30mm, Height: 5-18mm
Length Of Finished Bag: 50-80mm Shape Of Candy: Square, Ellipse, Oblate, Globular, Plum Blossom
Gross Power: 4Kw Overall Dimension: 2800*1350*1720
Gross Weight: 1400kg Power Supply: 220v 50Hz
Material: Stainless Steel Key Word: Hard Candy Pillow Packing Machine
High Light:

4Kw Pharmaceutical Machinery Equipment

,

4kw pillow pack machine

,

1200bags/min pillow pack machine

Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment



Product Overview of Packing Machine



The machine is suitable for simple-grain hot pillow type packing of candy. It adopts stepless high speed, continuous full-automatic operation. Advanced structure, stable running and convenient adjustment.



Its equipped with photoelectric eye to track color index automatically, and it has preponderances of a reliable and accurate orientation. Low noise and good performance.



Candies packed by this kind of machine will be characterized on beautiful shapes, strong sealing performance, good sanitation qualification and long preserved time, so the machine is pillow type packing equipment that packing speed is the quickest at present in China.





Product Parameters of Packing Machine

Production Capacity
1200bags/min
Packing Range
Length: 12-40mm, Width: 12-30mm, Height: 5-18mm
Length of Finished Bag
50-80mm
Shape of Candy
Square, Ellipse, Oblate, Globular, Plum Blossom
Gross Power
4Kw
Overall Dimension
2800*1350*1720
Gross Weight
1400kg
Power Supply
220v 50Hz





Feature of Packing Machine​



1. This machine has functions of error alarm auto display, safety protective door, and safety switch.


2. The machine adopts touch screen operation to show operation condition, operation instruction, error display, production quantity count; which make machine operation more visualized.


3. The machine can install wrapping paper auto connection device, which achieves wrapping paper changes without stopping machine..


4. The machine has successfully been designed to be fast in packing speed, less empty bags and stable in performance. Besides it also has device for removing empty bags.


5. The machine has also been designed to be durable in use and easy to change spare parts.


6. Using of timing belt makes machine to be less noisy while working.

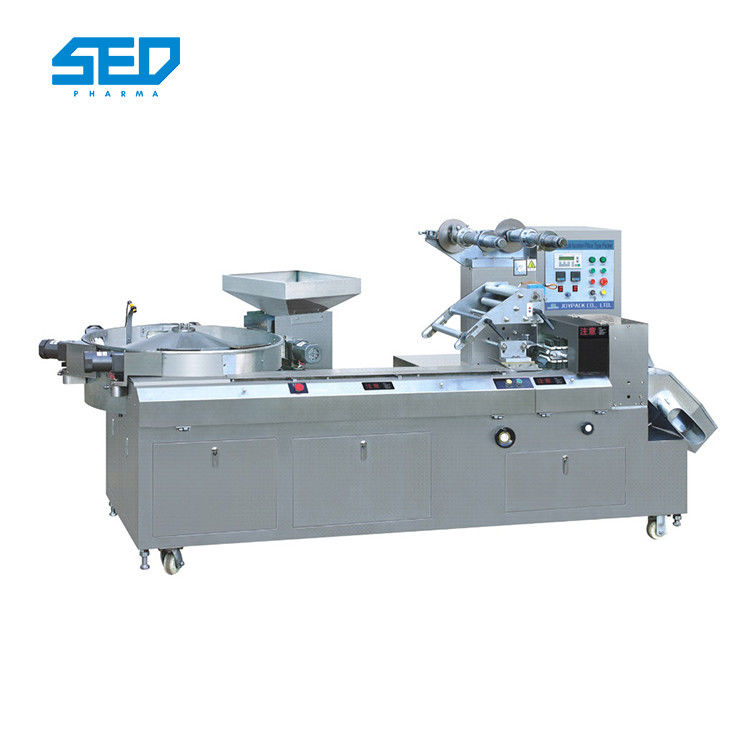

Show of Packing Machine



Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment 0

Application of Packing Machine



Suitable for packing regular items such as bread, biscuits, moon cakes, cereal bars, ice cream,
Vegetables, chocolate, rusks, cutlery, lollipops, etc.

Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment 1

Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment 2Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment 3Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment 4Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment 5Hard Candy Pillow Pack 4Kw Pharmaceutical Machinery Equipment 6
