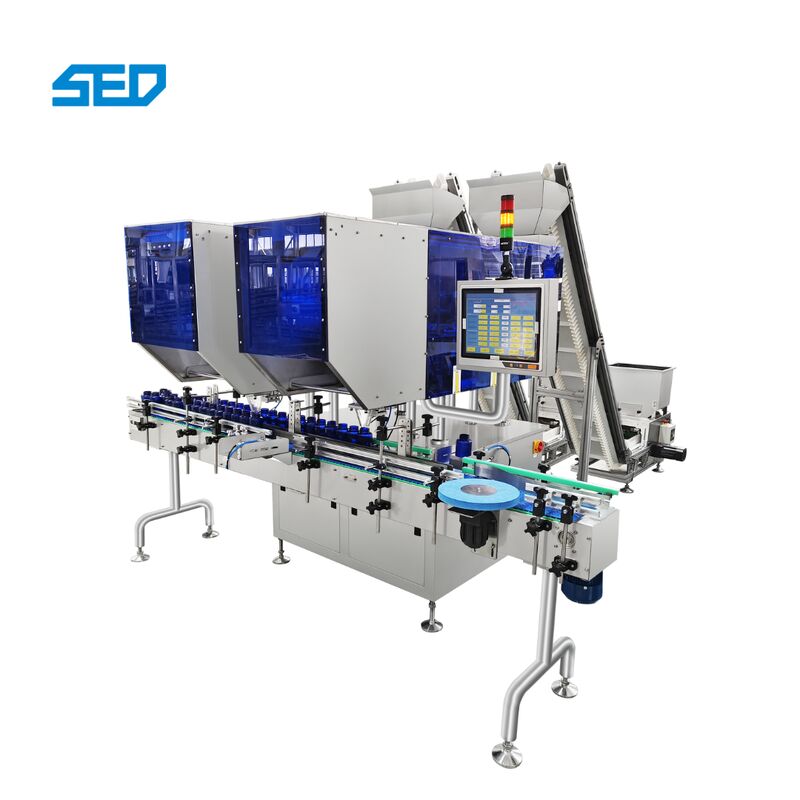

Automatic High-Precision 16-Lane Visual Counter Pill Counting Machine
Product Description of Capsule Counting Machine
The 16-Channel Vision Counting Machine represents the next generation of pharmaceutical packaging technology. Unlike traditional infrared counters, this machine utilizes High-Speed Industrial Camera Dynamic Scanning and AI-driven image analysis.
It is specifically engineered to solve the challenges of counting irregular shapes, transparent softgels, and broken pieces. With its advanced "Area Detection" technology, it guarantees an industry-leading accuracy rate of ±1 per 10,000, even in high-dust environments.
Trait of Capsule Counting Machine
1) Intelligent Detection and Reject System
The machine automatically detects and rejects defective bottles containing over-counted or under-counted items, overlapping tablets, and products with a damage rate exceeding 20%, ensuring a high qualification rate of finished products.
2) Three-Stage Vibration Feeding with Dust Removal
Equipped with a three-level stepped vibration track, materials are gradually separated layer by layer, effectively preventing product overlapping. A built-in three-stage dust extraction system ensures that products are clean and dust-free before filling.
3) Vision-Assisted Illumination Technology
The industrial camera features automatic auxiliary lighting, and the lens is positioned approximately 300 mm away from the product discharge area, completely eliminating counting errors caused by dust interference that commonly affects traditional electronic counting machines.
4) User-Friendly Operating System
The machine is equipped with a bilingual (Chinese/English) graphical HMI, providing real-time fault diagnosis and clear alarm messages for intuitive operation and easy maintenance.
Technical Parameters of Capsule Counting Machine
Equipment Model | Visual Counting Machine |
Applicable Product Size | Thickness: 3–30 mmDiameter: 1–30 mmLength: 2–45 mm |
Production Capacity | 70 bottles/min (irregular tablets subject to actual feeding conditions) |
Filling Quantity per Bottle | 8–9999 pcs |
Number of Linear Feeding Channels | 16 channels |
Hopper Capacity | 50 L |
Conveyor Belt Length | 1900 mm (customizable) |
Container Diameter | Ø30–Ø75 mm |
Container Height | 40–200 mm |
Power Supply | 220V / 380V, 50 / 60 Hz |
Compressed Air Supply | 5 kg/cm², 20 L/min |
Working Air Pressure | 3–5 kg/cm² |
Machine Dimensions | 2560 × 1700 × 1840 mm (subject to actual machine) |
Machine Show of Capsule Counting Machine
Application of Capsule Counting Machine
- Pharmaceuticals: Irregularly shaped tablets, transparent soft capsules, and pills.
- Nutraceuticals: Gummy vitamins, herbal supplements, and gel caps.
- Food Industry: Small candies, chocolate beans, and specialty snacks.
