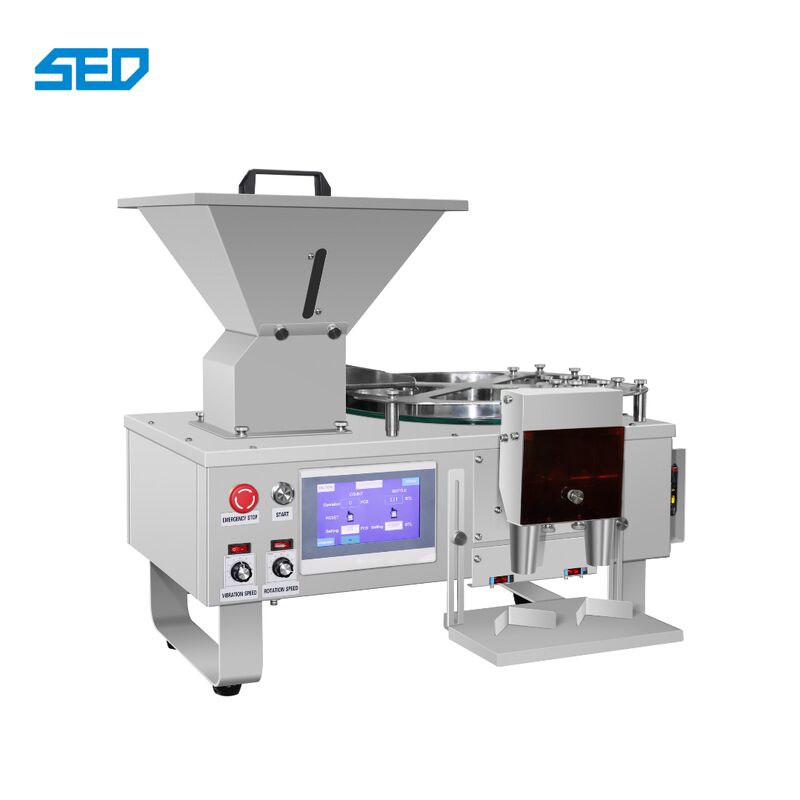

SED-2BS-H Semi-Automatic Electronic Counting Machine | GMP Compliant Pill & Capsule Counter
Product Description of Capsule Counting Machine
The SED-2BS-H is a high-tech, desktop electronic counting solution engineered for the pharmaceutical and healthcare industries. Combining advanced optical fiber sensing with PLC automation, this machine delivers industry-leading accuracy for counting and bottling various solid dosage forms.
Designed in strict accordance with GMP standards, its all-stainless steel construction and intelligent self-diagnostic system make it a reliable cornerstone for your production line.
Technical Parameters of Capsule Counting Machine
|
Model
|
SED-2BS-H
|
|
Capacity
|
600-2000pcs/min
|
|
Application
|
Hard capsules, soft capsules, tablets, pills
|
|
Control system
|
Touch screen
|
|
Counting method
|
IR detection
|
|
Application
|
Capsules:000#-5#
Tablet diameter:5-25MM
|
|
Bottles size
|
Max. diameter≤65mm
Height≤ 165mm
|
|
Count error
|
±0.3%
|
|
Voltage power
|
220V/50-60Hz /500W
|
|
Net weight
|
55kg
|
|
Dimensions
|
735X580X724MM
|
|
Gross weight
|
78KG
|
|
Packing size
|
800X650X870MM
|
|
Machine material
|
Main parts material stainless steel 304 (0Cr18Ni9)
|
Main Features of Capsule Counting Machine
1.Vibratory Feeding & Stepless Speed Control: Utilizes international advanced vibratory discharge and stepless speed regulation for smooth, consistent product flow.
2.Intelligent PLC & Touch Screen Control: Features a user-friendly interface for easy parameter setting (1-9999 units) and real-time system self-checks.
3.Infrared Eye with Auto-Light Compensation: Our cutting-edge infrared sensors require no manual adjustment. The system automatically adjusts to light conditions, ensuring ultra-high accuracy.
4.Smart Dust Management: Equipped with a powder and chip collection device. If dust buildup affects accuracy, the automatic alarm system halts operation, ensuring every bottle is filled correctly.
5.Ergonomic Dual-Outlet Design: Specifically designed for efficient manual operation, allowing a single operator to use both hands for rapid bottling.
6.Universal Compatibility: No mold changes required! Effortlessly switch between counting tablets, hard capsules, pills, and transparent softgels of various shapes and sizes.

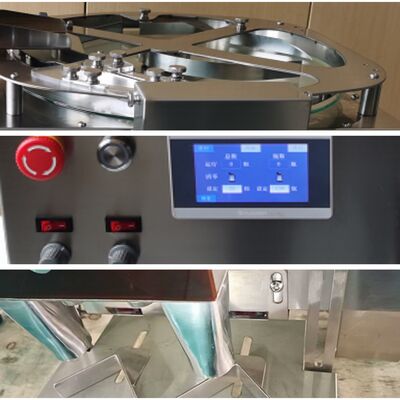

Product Show of Capsule Counting Machine
Application of Capsule Counting Machine
Counting Machine for pharmaceutical, hospitals, food and other industries, capsules, tablets , granules and other drugs or food counting . It is small , light weight, count is accurate, easy to operate. Count items contact surfaces are made of stainless steel , are all relevant sectors bottled , bagged , canned products counting the ideal equipment.
