SED-320SJT-F Pinhole Detector Machine

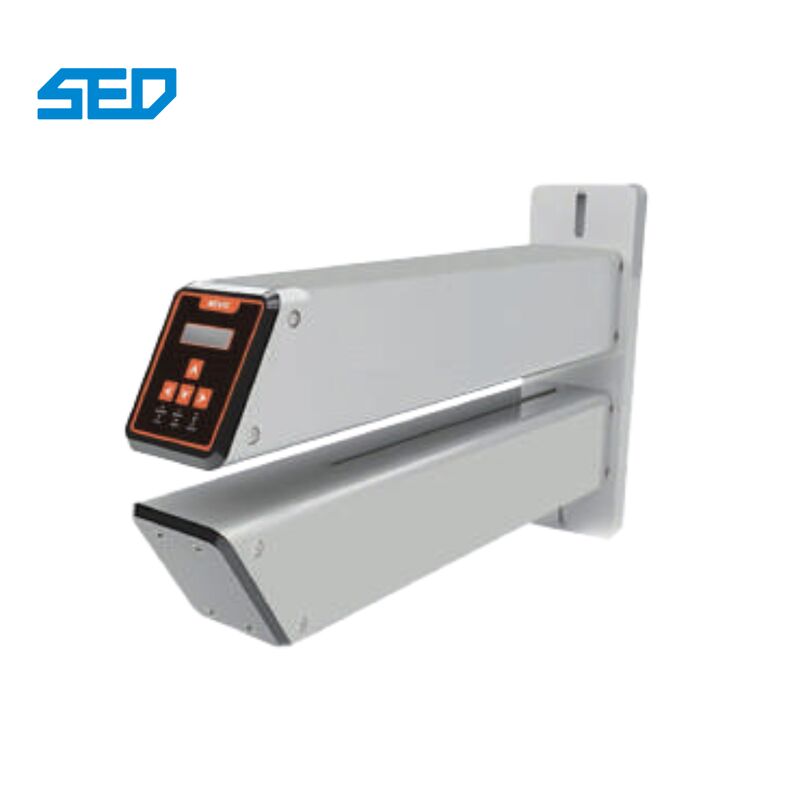

Large Image : SED-320SJT-F Pinhole Detector Machine

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-320SJT-F

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C,MoneyGram,Cash
Supply Ability:	30 Sets per month

Contact Now

SED-320SJT-F Pinhole Detector Machine

Description

Name:	SED-320SJT-F Pinhole Detector Machine	Inspection Item:	Tearing And Micropores
Detection Principle:	Internationally Used Gallium Arsenide Emitter And Receiver (receiving Infrared And Light)	Accuracy:	10 μm, 15 μm, 25 μm, 35 μm, 50 μm, 75 μm, And 100 μm (can Be Adjusted And Locked With Buttons)
Working Voltage:	Stable 24VDC	Key Word:	Pinhole Detector Machine, Pinhole Detector, Pinhole Detector For Aluminium Foil, Pinhole Detection System
Highlight:	Micropore & Tear Identification , GMP/cGMP Compliant , Automatic Rejection System

Product Overview of SED-320SJT-F Pinhole Detector Machine

Ensure the integrity of your pharmaceutical packaging with the SED-320SJT-F Pinhole Detecter Machine. Designed for the rigorous demands of the nutraceutical and pharmaceutical industries, this system utilizes advanced Gallium Arsenide (GaAs) emitter and receiver technology to detect even the smallest micropores and tears in foil and film.

Product Parameters of SED-320SJT-F Pinhole Detector Machine

Model	SED-320SJT-F
Detection Principle	Internationally used gallium arsenide emitter and receiver (receiving infrared and light)
Inspection Item	Tearing and micropores
Accuracy	10 μm, 15 μm, 25 μm, 35 μm, 50 μm, 75 μm, and 100 μm (can be adjusted and locked with buttons)
Detect Width	260 MM, 320 MM or customized according to customer requirements
Rejection System	If the machine is controlled by PLC, the detection system can use the removal system of the bubble wrap packaging machine. If the machine does not have a PLC system, a removal system needs to be selected.
Working Voltage	Stable 24VDC
Operating Current	1.5 A

Feature of SED-320SJT-F Pinhole Detector Machine

Micro-Level Accuracy: Adjustable detection sensitivity from 10 μm to 100 μm, ensuring zero-defect packaging.
Advanced Detection Technology: Uses internationally recognized infrared/light receiving principles for stable, high-speed performance.
Flexible Integration: Seamlessly connects with PLC-controlled blister machines for automatic rejection, or operates as a standalone unit with a custom rejection system.
