Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System

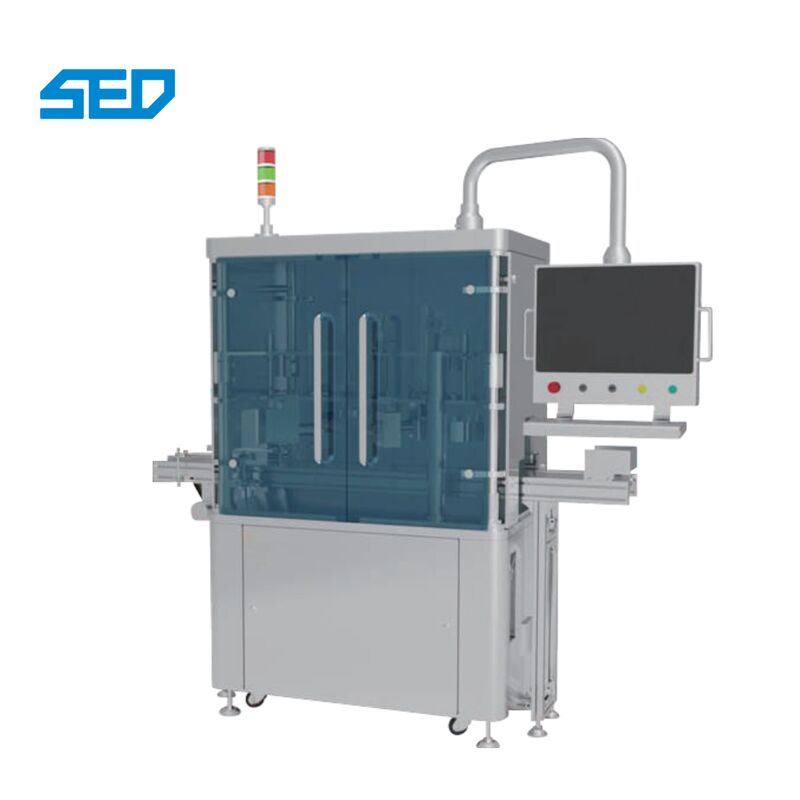

Large Image : Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-300SJT-B

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$150,000~$200,000
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C,MoneyGram,Cash
Supply Ability:	30 Sets per month

Contact Now

Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System

Description

Name:	Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System	Speed:	18,000 Bottles/hour
Weight:	Approx. 200 Kg	Power Supply:	AC 220V / 50Hz
Key Word:	Bottle Cap Inspection Machine, Vision Inspection System For Bottles, Pharmaceutical Bottle Inspection Equipment	Inspection Range:	Round Bottles (20ml – 50ml)
Highlight:	high-speed bottle cap inspection machine , vision inspection system for bottles , visual inspection equipment with warranty

Product Overview of Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System

The SED-300SJT-B is an advanced vision-based inspection system designed for pharmaceutical and packaging industries. With an embedded structure and high-precision imaging technology, it ensures reliable detection of cap sealing defects and bottle quality issues.

Equipped with 5 synchronized 2D cameras, the system provides full-angle inspection for bottles and caps, ensuring product integrity before and after filling.

Product Parameters of Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System

Model	SED-300SJT-B
Dimensions (L×W×H)	1000 × 700 × 1700 mm
Inspection Range	Round bottles (20ml – 50ml)
Inspection Speed	18,000 bottles/hour
Inspection Content	Cap Inspection: Tamper ring gap/leakage, tamper ring damage, broken ring, missing cap, high cap, dirty cap, burrs, misaligned cap, scratches, cracks, bottle leakageBottle Inspection: Contamination, black spots, damage, insufficient neck material, poor cutting edge, foreign objects at bottle bottom
Power Supply	AC 220V / 50Hz
Power Consumption	0.5 kW
Machine Weight	Approx. 200 kg

Feature of Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System

1. Superior Imaging Performance

Equipped with 5 customized 2D cameras
Delivers higher resolution and better detail recognition compared to standard industrial cameras at the same resolution
Waterproof and moisture-resistant design ensures stable performance in demanding environments

2. Comprehensive Bottle Inspection

Full coverage inspection of bottle cap and shoulder with no blind spots
Detects leakage at the bottle shoulder
Supports post-filling cap sealing inspection

3. User-Friendly Design

Quick and easy adjustment of inspection stations
Multi-channel design to improve production capacity
Compatible with multiple bottle specifications

4. Compact & Easy Integration

Embedded design for seamless installation
Can be integrated into existing production lines with minimal modification
No impact on current production capacity

5. Multi-Angle Inspection

Uses five 2D vision angles combined with advanced image-processing algorithms
Ensures accurate and reliable defect detection

6. Strong Compatibility

Compatible with different cap types, including yellow caps and white caps

Show of Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System

Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System 0
