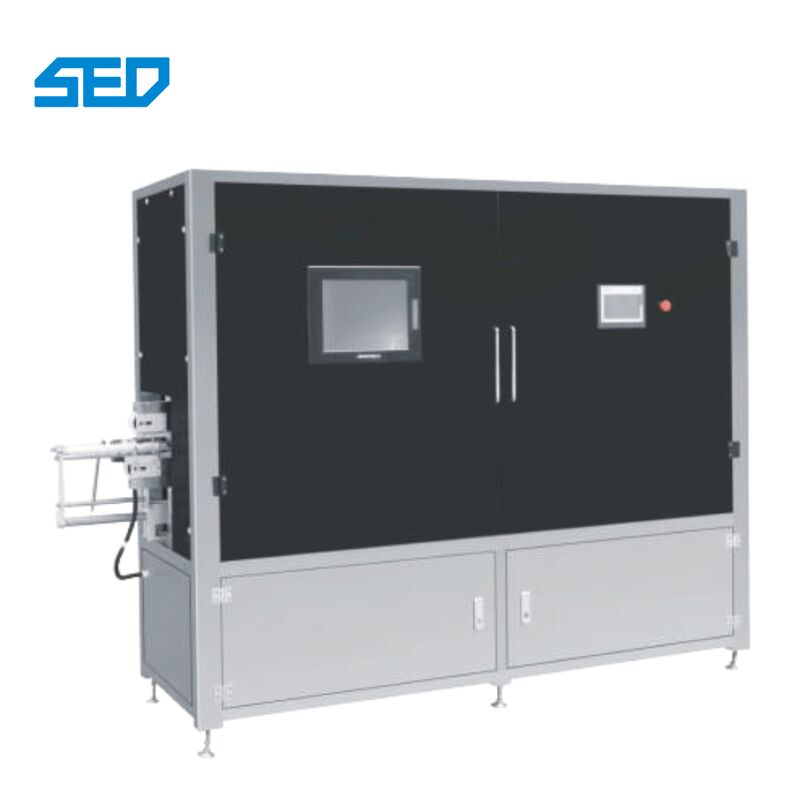

High-Accuracy Visual Inspection System for Vials Bottle

Name: Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System

Speed: 18,000 bottles/hour

Weight: Approx. 200 kg

Power Supply: AC 220V / 50Hz

Name: SED-150PZSJ-A Aluminum Plastic Blister Inspection System

Aluminum Pre Sealing Inspection: Missing granules/capsules on the back, detection of dirt, foreign objects, etc.

Aluminum Sealed PVC Surface: Defects, powder leakage, dirt, foreign objects such as hair and metal, concave blister, unclear mesh, wrinkles on the medicine board, batch number testing, etc.

Aluminum Film Surface After Aluminum Sealing: Defects such as aluminum film damage, wrinkles, pinholes, etc.

Name: High-Speed Fully Automatic Blister Board Inspection Machine

Speed: 800 PCS/MIN

Weight: 800 KG

Power Supply / Power: 380 V ; 50/60 Hz ; 9 KW

Name: AI-Powered Bubble Cover Detection Equipment

Inspection Item: Missing pieces, half pieces/granules, fragments, capsule damage, intra piece damage, black spots, surface stains, hair strands, uneven cutting, batch number deviation, perforation, aluminum foil scratching, aluminum foil joints, aluminum foil wrinkles, etc

Accuracy: 0.05 MM, Adjustable accuracy

Power Supply: 380 V / 50 Hz

Name: SED-320SJT-F Pinhole Detector Machine

Inspection Item: Tearing and micropores

Detection Principle: Internationally used gallium arsenide emitter and receiver (receiving infrared and light)

Accuracy: 10 μm, 15 μm, 25 μm, 35 μm, 50 μm, 75 μm, and 100 μm (can be adjusted and locked with buttons)
