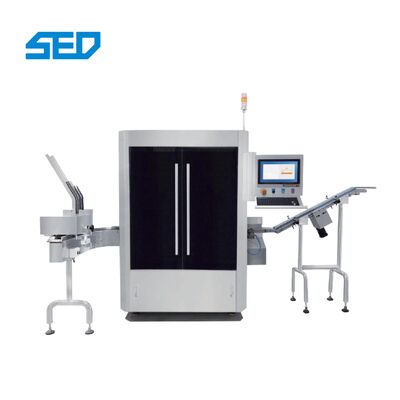

Product Overview of Fully Automatic Blister Pack Inspection Machine
The SED-800PZSJ-F Fully Automatic Blister Pack Inspection Machine is designed for tablets and soft/hard capsules packaged in aluminum-plastic blister packs. Installed after the blister packaging machine, it inspects boards automatically to ensure high-quality packaging and accurate product verification.
With a detection speed of 800 pcs/min, this machine can identify defects such as air bubbles, excessive filling, tablet defects ≥20%, capsule missing cap, powder leakage, poor heat sealing, cutting deviation, and batch number errors. Optional side/back inspection stations provide even more comprehensive quality control.
Product Parameters of Fully Automatic Blister Pack Inspection Machine
|
Model
|
SED-800PZSJ-F
|
|
Applicable
|
Tablets, soft/hard capsules
|
|
Inspection Specifications
|
Length ≤ 200 MM
|
|
Applicable Packaging Form
|
Aluminum-plastic Packaging
|
|
Detection Speed
|
800 PCS/MIN
|
|
Inspection Item
|
Pills, soft/hard capsules with air bubbles, excessive filling, tablet defects not less than 20%, capsule missing cap, capsule powder leakage, poor heat sealing, cutting deviation, batch number, etc
|
|
Installation Location
|
After the bubble wrap packaging machine, the bubble wrap board is attached with film and cut into boards
|
|
Optional
|
Side/back inspection station
|
Feature of Fully Automatic Blister Pack Inspection Machine
High Speed and Efficiency: Inspects up to 800 blister packs per minute, seamlessly integrating with high-volume production lines to avoid bottlenecks.
Advanced AI Vision Inspection: Utilizes a high-resolution camera to identify various defects, including:
- Product Defects: Tablet breakage, powder leakage, missing caps, and fill volume deviation (>20%).
- Packaging Defects: Bubbles, poor heat sealing, and cutting deviations.
- Compliance Checks: Verifies batch numbers and expiration dates (OCR/OCV).
Wide Applicability: Perfectly suited for standard aluminum-plastic (Alu-PVC/PVDC) blister packaging of tablets, soft capsules, and hard capsules.
Flexible Specifications: Handles blister packs up to 200 mm in length, meeting the needs of various packaging sizes.
Optional Dual-Sided Inspection: Upgradeable to a side/back inspection station, ensuring 360° all-around quality control for critical products.
Seamless Integration: Designed for direct mounting after the blister packaging and cutting machines, featuring automatic rejection of defective blister packs.
Show of Fully Automatic Blister Pack Inspection Machine
