Product Details:
|
Name: | Sachet Packaging Machine | Overall Dimension: | 2550mm*1100mm*1400mm |
---|---|---|---|
Power: | 380V 50Hz | Weight: | 1200kg |
Key Word: | Automatic Bag Packing Machine, Sachet Packing Machine,Bag Packing Equipment | ||
Highlight: | Automatic sachet packaging machine 380V,Food packaging machine 50Hz,Industrial sachet packing machine |
Attribute | Value |
---|---|
Name | Sachet Packaging Machine |
Overall dimension | 2550mm*1100mm*1400mm |
Power | 380V 50Hz |
Weight | 1200kg |

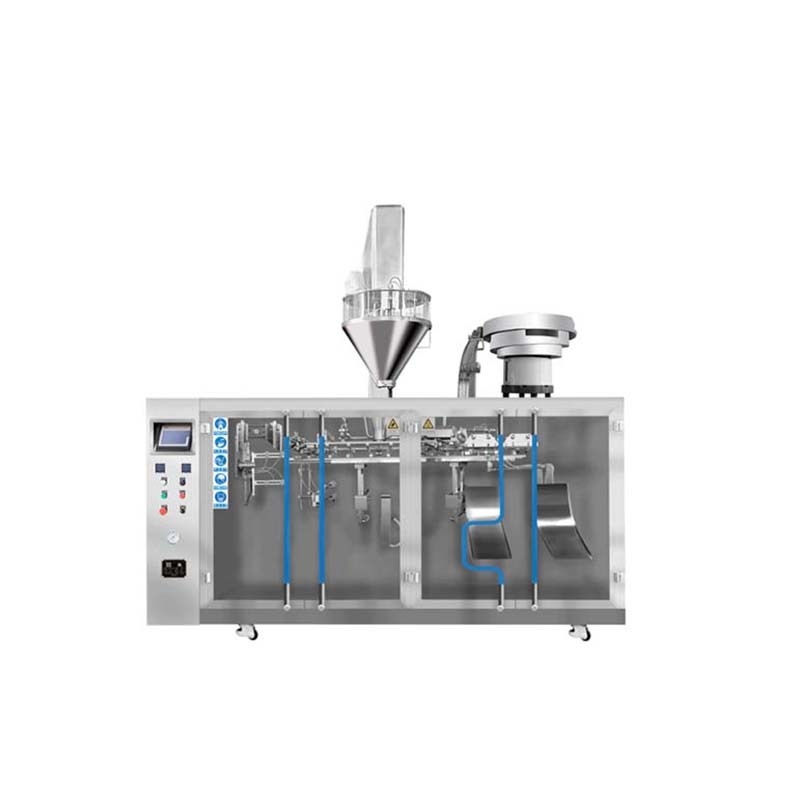

This sachet packaging machine features a precision adhesive suction operation executed on both sides of the bag opening using specialized vacuum suction cups. The suction cups firmly attach to the bag surface, creating a reliable seal for secure gripping. A cam swing rod mechanism then converts rotational motion into smooth swinging movement to drive the bag opening process.
The synchronized pulling action prevents uneven stress on the bag, ensuring even opening without tearing or deformation. Following this, bag clamping grips move synchronously toward the middle to apply controlled pressure, fully expanding the opening for smooth material filling.
The machine accommodates various bag materials with different suction cup types: gentle grip for thin plastics, stronger suction for rigid composites, and specialized air flow designs for porous materials like paper. This adaptability ensures optimal performance across diverse packaging applications.
Model | SED-210GD-B |
---|---|
Speed | ≤60bag/min |
Power | AC380V,50HZ |
Filling Capacity(Max.) | 1500ml |
Weight | 1200kg |
Overall dimension | 2550mm*1100mm*1400mm |
