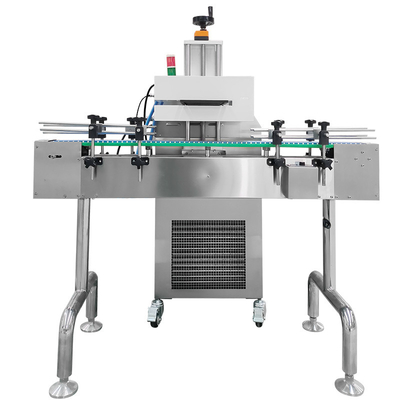

Water Cooling Aluminum Foil Induction Sealing Machine For 20-300ml Bottle Size

Water Cooling Aluminum Foil Induction Sealing Machine For 20-300ml Bottle Size
Water Cooling Aluminum Foil Induction Sealing Machine For 20-300ml Bottle Size
Water Cooling Aluminum Foil Induction Sealing Machine For 20-300ml Bottle Size Water Cooling Aluminum Foil Induction Sealing Machine For 20-300ml Bottle Size

Large Image :  Water Cooling Aluminum Foil Induction Sealing Machine For 20-300ml Bottle Size

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-LFS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50-60 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

Water Cooling Aluminum Foil Induction Sealing Machine For 20-300ml Bottle Size

Description
Name: Water Cooling Aluminum Foil Induction Sealing Machine Bottle Size: 20-300ml
Output: 50-150 Bottles/min Diameter Of Caps: Smaller Than 60mm
Height Of Bottle: 220mm Power Supply: AC220V 50/60Hz Single Phase
220V 60Hz: 4KW Overall Dimensions: 665*170*100mm
Material: Stainless Steel Key Word: Aluminum Foil Sealing Machin
Highlight:

300ml aluminum foil induction sealing machine

,

20ml aluminum foil induction sealing machine

,

Water Cooling induction foil sealer machine

Water Cooling Aluminum Foil Induction Sealing Machine



Water Cooling Aluminum Foil Induction Sealing Machine For 20-300ml Bottle Size 0




Product Description of Sealing Machine

SED-LFS Automatic Electromagnetic Aluminum Foil Induction Sealing Machine is used to seal aluminum foil inside the non-metal cap of plastic and glass bottles, reaching the aim of wet-proof, leakage-proof and extending preservation time. It is widely used as sealing packaging machine in industries such as pharmaceuticals, chemicals, cosmetics, foods, etc.


Working Principle

After the cap or closure is applied, the container passes under induction coils, which emit an oscillating electromagnetic field. As the container passes under the induction coils (sealing head), the conductive aluminum foil liner begins to heat due to eddy currents. The polymer film heats and flows onto the lip of the container. When cooled, the polymer creates a bond with the container resulting in a hermetically sealed product.


Product Parameters of Sealing Machine

Model Name SED-LFS
Applicable Bottle Size

Bottle Mouth Diameter: 20-120mm

Bottle Height ≤180mm

(Special requirements can be customized.)

Conveying Speed 0-25m/min
Sealing Speed 50-150 bottles/min
Voltage AC220V 50/60Hz Single Phase
Power 4KW
Induction Head Size 665*170*100mm
Weight 75kg
Overall Dimension (L*W*H) 1360*500*1090mm





Application of Sealing Machine​

Water Cooling Aluminum Foil Induction Sealing Machine For 20-300ml Bottle Size 1
