Multifunctional Vertical Soap Cartoning Machine with 304 Stainless Steel Construction and 20-50 Boxes/min Speed

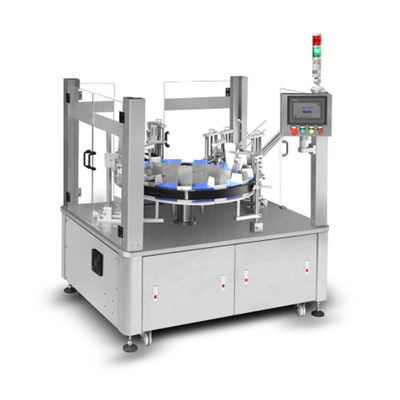

Large Image : Multifunctional Vertical Soap Cartoning Machine with 304 Stainless Steel Construction and 20-50 Boxes/min Speed

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-50LZH

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C,MoneyGram,Cash
Supply Ability:	30 Sets per month

Contact Now

Multifunctional Vertical Soap Cartoning Machine with 304 Stainless Steel Construction and 20-50 Boxes/min Speed

Description

Name:	Multifunctional Vertical Soap Cartoning Machine	Keywords:	Cartoning Machine,soap Cartoning Machine,vertical Cartoning Machine
Power:	0.75kw 220V 50HZ	Steady Production Speed:	20-50 Boxes/min
Paper Box's Smallest Size:	60 X 20 X 20 Mm	Total Weight:	450kg
Dimension:	L 1100 X W 1500 X H 1700 Mm
Highlight:	Vertical Soap Cartoning Machine , 30Boxes/min Soap Cartoning Machine , 50HZ Film Coating Machine

Multifunctional Vertical Soap Cartoning Machine

Product Description of Vertical Cartoning Machine

The SED-50LZH-F vertical cartoning machine is designed for small-batch, multi-size box packaging needs in pharmaceutical, food, cosmetic, and electronics industries. Featuring 304 stainless steel construction, Siemens PLC, and color touch screen, it offers quick changeover and easy operation - an ideal automated packaging solution for SMEs.

Technical Parameters of Vertical Cartoning Machine

Model No.	SED-50LZH-F
Production speed:	20-50 box per min
Paper box's largest size	200 x 80 x 80mm
Paper box's smallest size	60 x 20 x 20 mm
Paper quality of carton	250-350g/m3
Motor horsepower	1/4HP 15:1 1.5KW/H
Power supply	220V 50/60HZ single phase
Machine noise	≤80dB
Gas source	0.5-0.8 Mpa
Compress air consumption	260L/min
Machine measurement:	L 1100 x W 1500 x H 1700 mm
Machine weight	450Kg

Features of Vertical Cartoning Machine

Wide Compatibility: Handles box sizes from 60×20×20mm to 200×80×80mm
Quick Changeover: Simple mold replacement minimizes downtime
Smart Control: Siemens PLC + 5.7" color touch screen for intuitive operation
Durable Construction: 304 stainless steel meets hygiene standards
Compact Design: Small footprint suits limited spaces
