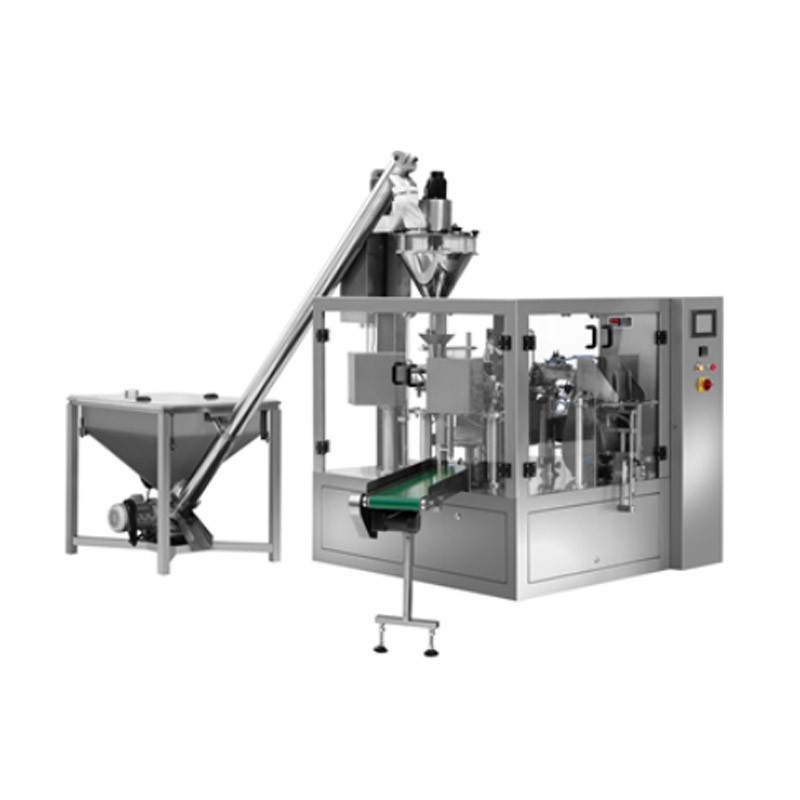

Automatic Powder Pull Bag Packaging Machine

Automatic Powder Pull Bag Packaging Machine
Automatic Powder Pull Bag Packaging Machine

Large Image :  Automatic Powder Pull Bag Packaging Machine

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-240FGD-J
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50-60 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

Automatic Powder Pull Bag Packaging Machine

Description
Name: Automatic Powder Pull Bag Packaging Machine Packing Speed: 10-40bags/min
Tag Size: W:80-240mm L: 150-350mm Weighing Range: 2000kg
Air Consumption: ≥0.35m3/min Total Power: 4kw
Power: 380V /50HZ Keyword: Automatic Packing Machine
High Light:

Powder Automatic Machine

,

Powder Pull Bag Packaging Machine

,

Automatic Pull Bag Packaging Machine

Automatic Powder Pull Bag Packaging Machine



Operation Procedure



This machine replaces manual packaging and realizes packaging automation for large enterprises, small and medium-sized enterprises. The operator only needs to put the prepared bags one by one and place hundreds of bags at the bag taking part of the equipment at a time, and the mechanical grip of the equipment will automatically take the bags, print the date, open the bags, signal the metering device, measure, feed, seal and export. It can also add detailed functions such as door opening emergency stop, automatic card throwing, exception elimination and other functions according to product packaging requirements. The whole process of packaging does not require manual operations, which improves production efficiency, saves labor costs and management costs, and greatly reduces costs.

Suitable for paper-plastic composite, plastic-plastic composite, aluminum-plastic composite, PE composite. The low loss of packaging materials, the prefabricated packaging bags are used, the packaging bag patterns are perfect, and the sealing quality is good, thus improving the product quality. It can also be used for multiple purposes in one machine. It can realize automatic packaging of granules, powders, lumps, liquids, soft cans, toys, hardware and other products only by matching different measuring devices according to different materials.



Product Parameters

Model SED-240FGD-J
Materials Stainless steel 304
Pneumatic Components SMC, AirTAC
Vacuum Pump ORION
Drive way Variable frequency speed regulation motor drive
Metering method Screw Scale, Linear Scale
Touch screen Chinese and English
Applicable materials Powdered materials such as milk powder, coffee, condiments, additives, etc.
Packing bag type Self-supporting bags, handbags, zipper bags, four-side sealing bags, three-side sealing bags, paper bags, M-shaped bags and other composite bags
Materials of packing bag PA/PE,PET/PE,Aluminum film and other heat sealing films
Packing size

W:80-240mm

L: 150-350mm(The code is required to be less than 140mm away from the pocket mouth)

Filling range 5-1000g
Packing speed 10-40bags/min
Weighing accuracy ≤±1%
Weight 2000kg
  1645mm*1645mm*1640mm(L*W*H)
Power 4kw
Driver switch 380V /50HZ
Control switch DC24V
Compressed air consumption ≥0.35m3/min
Optional Screw scales, linear scales, measuring cups, screw feeders, weight sorting scales, metal detectors, vacuum cleaners


Application

Suitable for candies, nuts, raisins, peanuts, melon seeds, nuts, potato chips, chocolate, tea, biscuits, cat food, dog food and other particles and irregular automatic measurement packaging.

Automatic Powder Pull Bag Packaging Machine 0

Suitable bag types

Self-supporting bags, zipper bags, four-side sealing bags, three-side sealing bags, paper bags and other composite bags.
Automatic Powder Pull Bag Packaging Machine 1

Work process

1. Load the bag, use the horizontal bag method, and send it to the machine clip (no bag alarm)

2. Open zipper + coding (ribbon detection, stop alarm when the ribbon runs out, touch screen display)

3. Upper bag opening + lower bag opening (open bag detection, no material blanking if the bag is not opened)

4. Unloading (detection: material is not filled, heat-sealed is not sealed) + pallet vibration

5. Dust cleaning (dust cleaning of bag mouth)

6. Reserve

7. Heat sealing one (detection: no heating, no heat sealing; need to customize the heat sealing knife) + exhaust

8. Heat sealing II


Main performance and features

1. Wide range of packaging: suitable for powders of various states and properties;

2. Applicable to different types of packaging bags;

3. Convenient operation: PLC control and man-machine interface operating system make the operation intuitive and convenient;

4. Easy to adjust: the replacement of varieties can be completed within about three minutes;

5. High degree of automation: unmanned in the whole process of weighing and packaging, and automatic alarm when fault occurs;

6. Perfect prevention system, which can intelligently detect whether the bag is opened and whether the bag is complete. In the case of unsuitable feeding, no feeding and no heat sealing, no waste of bags and materials, and cost savings;

7. The packaging parts of the machine are made of stainless steel to ensure the hygiene and safety of the materials and comply with GMP standards;

8. Imported tolerance plastic bearings are used in some components, without oiling, reducing the pollution to materials;

9. Oil-free vacuum pump is used to avoid polluting the production environment;

10. The dust-proof and waterproof design can be washed with water, which reduces the difficulty of cleaning and improves the service life of the machine;

11. Using prefabricated packaging bags, high sealing quality, improve the grade of finished products;

12. The device is equipped with a transparent plexiglass protective door.
