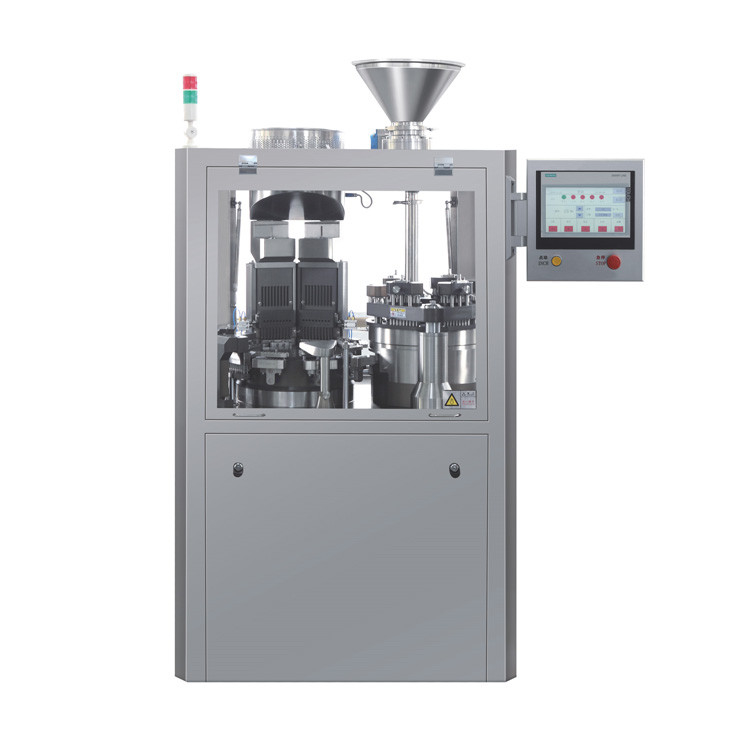

PLC Control Fully Automatic Capsule Filling Machine 150000 Capsules/hour
Product Description of Capsule Filling Machine
The SED-2500J-B automatic capsule filling machine produced by our company is the innovative product of the third generation after many times of innovations and improvements.
The new product is equipped with advanced technologies and perfect configuration. It not only covers all the functions and effects of the domestic capsule filling machine of the same model, but also has five pieces of innovation, three of which has been issued the utility model patent certificate by the national intellectual property administration, PRC at May 11, 2016.
The innovative NJP-1200C automatic capsule filling machine, whose performance and quality has reached the top level in domestic industry, has passed the inspection of Zhejiang Packaging Machinery Product Quality Inspection Center.
Product Parameters of Capsule Filling Machine
| Model: |
SED-2500J-B |
| Capacity: |
150000 capsules/hour |
| Manchine suitable for: | Capsule Size#00 to 5
Safety capsule A-E |
| Power supply: | 380V 50Hz (it can be changed depend on your requirement) |
| Power consume: |
8KW |
| Noise standard: | ≤75dB(A) |
| Weight: |
1500kg |
| Overail dimension: |
1100×120×2000mm |
Working Principle of Capsule Filling Machine
The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:
1. Movement of the capsule
During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering
disc hole. The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule guide groove by its own gravity, and then the horizontal fork and the vertical plug make the capsule cap upward and the
capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.
2. Drug filling
The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body. After that, it
enters into the capsule rejection, capsule locking, finished capsule discharge, module cleaning station in turn, and then enters a new round of station cycle, and the cycle begins again and again.
Main Features of Capsule Filling Machine
1. Opening and locking of capsule can be controlled automatically which is safe and convenient.
2. Equipped with inching control system, which makes it easy and convenient for cleaning, loading and unloading of upper and lower dies.
3. Equipped with gate control security system and mechanical failure security system, which provides functions of automatic alarm and shutdown.
4. Automatic alarm and shutdown will be activated when lacks empty capsule or powder.
5. Rich functions designed on the HMI, including counting and displaying functions during the production, and it is able to link with printer, if needed, for printing information including date of production, lot number, quantity, etc.
6. The capsule separation chamber is driven by seal guide rail, which can prevent defective capsules and dust from entering into the chamber during spreading capsules, ensuring the stability of operation.
7. Shafts of capsule absorbing, pushing, locking, as well as defective capsule rejecting are all sealed with two layers of sealing ring, among which the first sealing adopts Nitrile Butadiene Rubber (NBR) to prevent lubrication from losing, and the second sealing uses imported silicone rubber sealing ring (SIL) to prevent powder from entering bearings, which has effectively solved the problem of bearing damage and shaft jamming because of powder leakage.
8. The two horizontal shafts of high-precision fully enclosed turntable adopts PTFE oil-free bearings, which are sealed with imported silicone rubber sealing ring (SIL) for preventing powder from entering the inside room of the turntable, ensuring running accuracy of the turntable, without needing to maintain and add lubrication permanently.
9. The plane cams are running in the mode of double rails, where the two axes run out separately. It can improve the operation accuracy and meanwhile eliminate the possibility of collision between the lower die and the dosage disc.
10. The high precision cam splitter uses optical dividing head of German Zeiss. The dividing spindle is machined in the CNC all at once, which has ensured accuracy dividing of the turntable and dosage disc while the machine runs fast, thus ensuring the precision of filling. Higher precision of cam splitter also provides the machine longer service life.
11. The operating cams are all processed with 20crmoti carburizing and quenching treatment, and then machined in CNC grinding machine all at once, which has ensured the accuracy and unity of the cams and provided a longer service life.
