Product Details:
|
| Name: | Electric Powder Capsule Filling Machine | Capacity(Capsules/min): | 800 |
|---|---|---|---|
| Overall Dimension(mm): | 930×790×1930 | Power Supply: | 930×790×1930 |
| Total Power(KW): | 4.9 | Key Word: | Powder Capsule Filling Machine Automatic Capsule Filling Machine |
| High Light: | capsule filling device,capsule filling equipment |
||

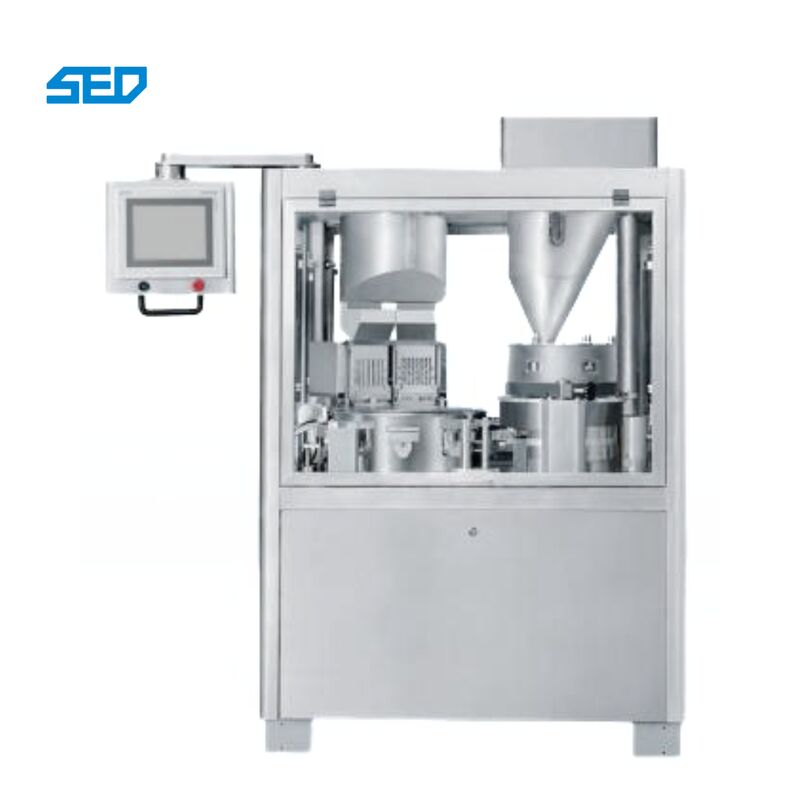

Electric Powder Capsule Filling Machine
Product Description of Capsule Filling Machine
SED-800J-C Automatic Capsule Filling Machine is commonly used in the pharmaceutical, nutraceutical industries to fill empty hard gelatin capsule of various sizes with powders and pellets (optional). The capsule filler automatically orientates, opens the empty hard gelatin capsule, properly fills the capsule with powder, and automatically closes the capsules.
Technical Parameters
| Model | SED-800J-C |
| Machine Weight | 800kg |
| Overall Dimension | 930×790×1930mm |
| Motor Power | 4.9KW |
| Power Supply | AC380V 50Hz 3P4W |
| Capacity | 800 capsules/min |
| Application | 00#-5# capsule, safety capsule A-E |
| Qualified Rate | ≥99.5％ |
| Working Noise | ≤75dBA |
| Filling Error |
≤±3％ (filling more than 300mg of 40-80 mesh granules) |
| Compressed Air | 0.06m3/min 0.3Mpa |
| Water Source | Water ring vacuum pump with water tank or connected to external water source |
| Water Flow | 250L/h |
| Diameter of Water Inlet | 20mm |
| Diameter of Drain Pipe | 27mm |
| Vacuum Degree | -0.02～-0.06 MPa |
| Working Environment | Temperature: 21℃±3℃ |
| Relative Humidity: 40～55％ | |
| Working Height | Manual feeding≥2.6m |
| Vacuum feeding≥2.8m | |
| Exhaust Volume | 300m3/h |
Characteristic
1.Touch-Screen, PLC program control panel with LCD.
2.The capsule qualified over 99%.
3.Removable powder hopper allows easy cleaning and auger adjustment allows change fills weight easily.
4.Speed and length of closed capsule are easy to adjust.
5.Electrical Appliance control system is in accordance with CE and international standards.
6.At the quick and accurate change part,easily and removable rotary table and ring carrier assembly is setted.
7.Fully enclosed rotary table and dosage station for integration of the whole capsule filling plants.
8.Large cam mechanism keeps the rotating table of mould together with the whole equipment running in balance, and completely guarantees the machine operating with highest precision and accuracy.
Working Principle of Capsule Filling Machine
The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:
1. Movement of the capsule
During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering
disc hole. The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule guide groove by its own gravity, and then the horizontal fork and the vertical plug make the capsule cap upward and the
capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.
2. Drug filling
The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body. After that, it
enters into the capsule rejection, capsule locking, finished capsule discharge, module cleaning station in turn, and then enters a new round of station cycle, and the cycle begins again and again.
Product Show of Capsule Filling Machine
Application of Capsule Filling Machine
