All Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen

All Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen
All Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen

Large Image :  All Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-390SF-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50-60 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

All Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen

Description
Name: All-Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen Effective Screen Diameter: 390mm
Effective Screening Area: 0.1207m² 1-3S Motor Parameters: 0.25KW
4-5S Motor Parameters: 0.37KW Number Of Layers: 1-5
Material: Stainless Steel Key Word: Vibrating Screen Machine
High Light:

Pharmaceutical Machinery Equipment Vibrating Screen

,

Stainless Steel Standard Vibrating Screen

,

Pharmaceutical Machinery Standard Vibrating Screen

All-Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen



Product Description of Vibrating Screen Machine



The all-stainless steel standard vibrating screen is suitable for continuous operation of the automatic feeding line with a high degree of mechanization, and the feed inlet can be sealed.



The screen can be installed with screen mesh of four layers or less, the screening accuracy can reach 28µ, and the dust will not fly. The new patented screen mesh frame design greatly improves the screening efficiency, which can fully meet the screening requirements of various industries.



Detailed Parameters of Vibrating Screen Machine

Name

All-Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen
Model
SED-390SF-F
Effective screen diameter
390mm
Effective screening area
0.1207m²
1-3S Motor Parameters
0.25KW
4-5S Motor Parameters
0.37KW
Number of layers
1-5





Working principle​ of Vibrating Screen Machine



All-stainless steel standard vibrating screens are made of vertical motors as the vibration source, by adjusting the angles of the two eccentric blocks at the upper and lower ends of the motor shaft.



The screen can be controlled to re-straight, level, and tilt three-dimensional motion to achieve screening. The effect of the material can also control the speed and movement path of the material when it passes through the screen during the screening process.

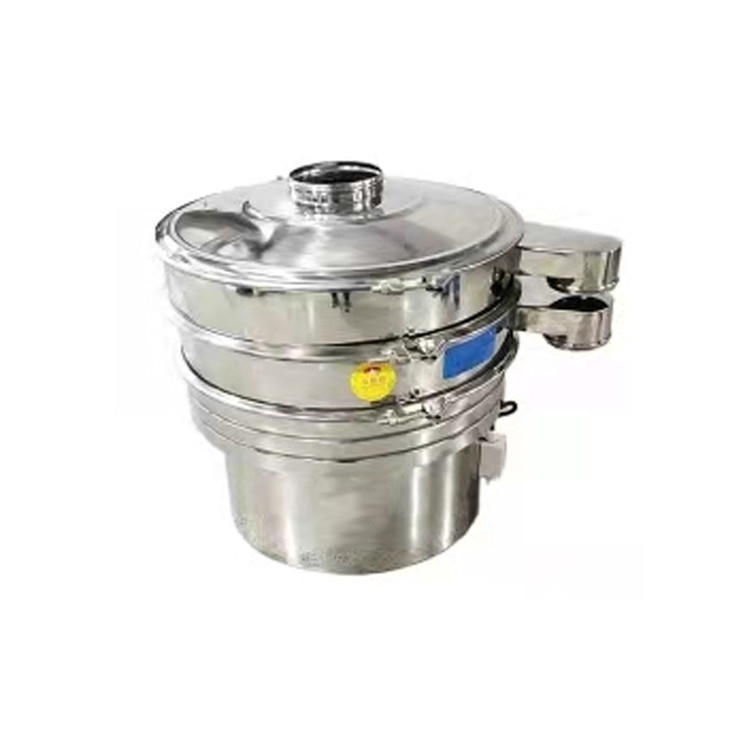

Product Show of Vibrating Screen Machine
All Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen 0



Application of Vibrating Screen Machine

1. Chemical Industry: abrasives such as resins, coatings, industrial medicines, cosmetics, paints, etc..



2. Ceramics industry: alumina, quartz sand, mud, kaolin, silicon carbide, sprayed soil particles, etc..



3. Food Industry: powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc..



4. Paper industry: coating paint, clay slurry, black and white liquid, waste liquid, papermaking liquid, waste water recycling, etc.



5. Metals, metallurgy and mining: aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic material, grinding powder, refractory material, lime, quartz sand, kaolin, alumina, heavy calcium carbonate, etc.



6. Pharmaceutical Industry: Chinese medicine liquid, western medicine powder, western medicine liquid, Chinese and western medicine granules, etc.



7. Pollution treatment: waste oil, wastewater, dyeing and finishing wastewater, additives, activated carbon, etc.









All Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen 1All Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen 2All Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen 3All Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen 4All Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen 5
