PVC 100 Bottles/Min Liquid Filling Machine Five Head Sealing

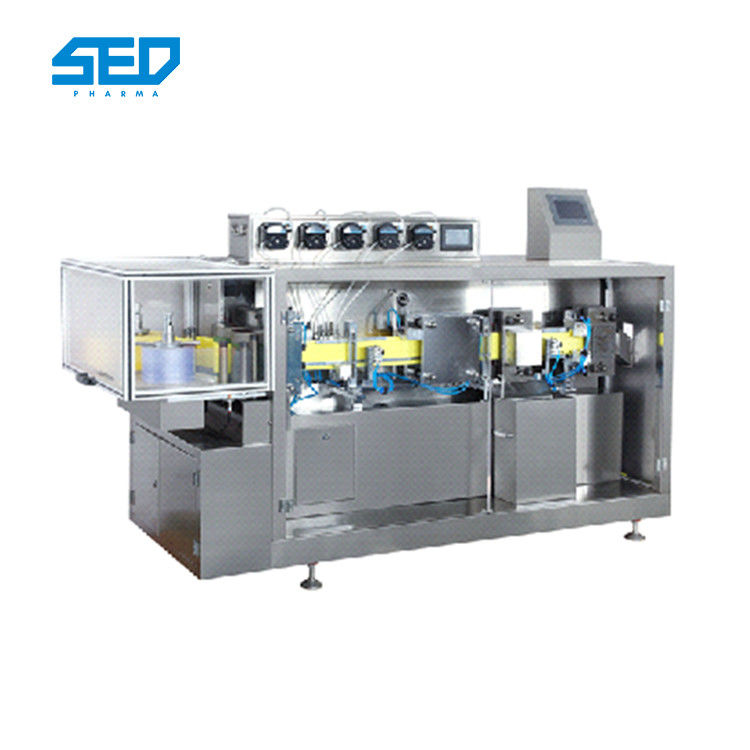

Large Image : PVC 100 Bottles/Min Liquid Filling Machine Five Head Sealing

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-240SF

Contact Now

PVC 100 Bottles/Min Liquid Filling Machine Five Head Sealing

Description

Name:	PVC 100 Bottles/Min Liquid Filling Machine Five Head Sealing	Number Of:	100 Bottles / Min
Filling Quotas:	Five Filling Head Filling At The Same Time	Packaging Materials:	PVC/PE (0.2 0.4) X 120 Mm
The Filling Capacity:	1-50 Ml/branch	Power Supply Is The Total Power:	6.0 Kw
Voltage:	Three-phase 220 V / 60 Hz (three-phase 380 V / 50 Hz)	Overall Dimensions (length X Width X Height):	2300 * 850 * 1450(mm)
Highlight:	100bottles/min Liquid Filling Machine , 6.0kw Liquid Filling Machine , 120mm PVC Liquid Filling Machine

PVC 100 Bottles/Min Liquid Filling Machine Five Head Sealing

Product Description

Maximum depth forming	12 mm
Number of	100 bottles / min
Filling quotas	Five filling head filling at the same time
Packaging materials	PVC/PE (0.2 0.4) x 120 mm
The filling capacity	1-50 ml/branch
Power supply is the total power	6.0 kw
voltage	Three-phase 220 v / 60 hz (three-phase 380 v / 50 hz)
Weight (kg)	850 kg
Overall dimensions (length x width x height)	2300 * 850 * 1450(mm)

1. PLC control, stepless speed regulation.
2. The 7 positions of paper, plastic molding, filling, batch number, tail trimming, and cutting are all executed automatically by the program.
3. The man-machine interface device, the operation is simple and clear.
4. The filling head does not drip, bubble, or overflow.
5. The relevant parts in contact with the liquid are made of high-quality stainless steel materials, which conform to the GMP standard.
6. Main pneumatic components and imported electrical accessories.
7. The electronic peristaltic pump controls the filling system and the mechanical filling, and the accurate measurement error is small.

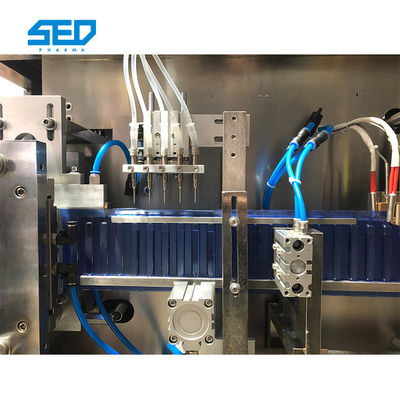

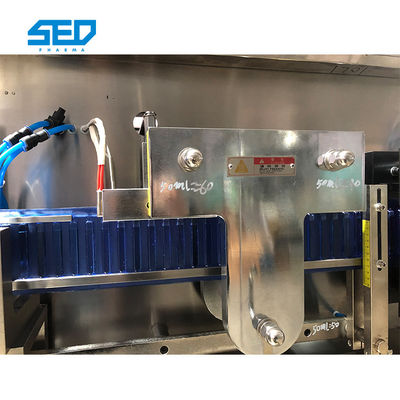

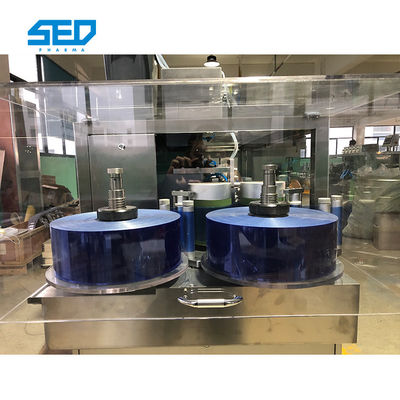

PVC 100 Bottles/Min Liquid Filling Machine Five Head Sealing 0

PVC 100 Bottles/Min Liquid Filling Machine Five Head Sealing 1
