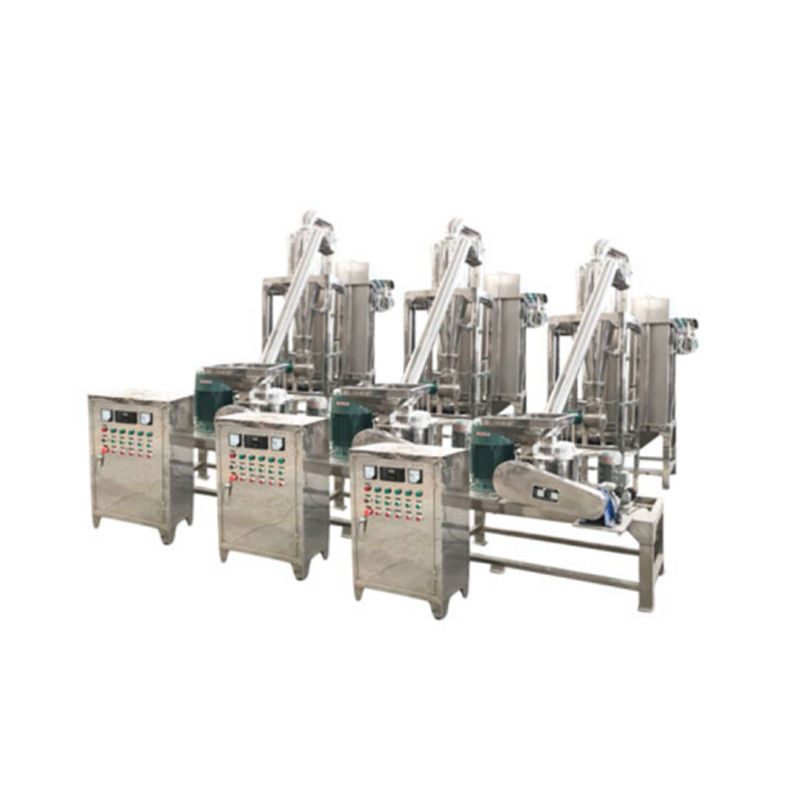

Pharmaceutical Grade 1000 Mesh Pulverizer Machine

Pharmaceutical Grade 1000 Mesh Pulverizer Machine
Pharmaceutical Grade 1000 Mesh Pulverizer Machine

Large Image :  Pharmaceutical Grade 1000 Mesh Pulverizer Machine

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-1200CFS1-H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50-60 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

Pharmaceutical Grade 1000 Mesh Pulverizer Machine

Description
Name: Pharmaceutical Grade Pulverizer Machine Production Capacity (kg/h): 600-1200kg
Feeding Size: <12mm Crushing Fineness: 80-1000 Mesh
Motor Power: 138kw Weight(kgs): 4000
Power: 138kw Outline Dimension L×W×H (mm): 10000x2800x5000mm
Material: Stainless Steel Key Word: Pulverizer Machine
Highlight:

pharmaceutical grade stone pulverizer machine

,

pharmaceutical grade stone pulverizer

,

10mm stone pulverizer machine



Product Overview of Pulverizer Machine



The machine is made up of three parts: main machine, auxiliary machine and electric control box. It has the properties of wind selection, having no sieve or net, and an even granularity of the processed material. The production process going on continuously, the machine can undertake the grinding of chemical products. food medicine, medicament, cosmetics, plastic, dyestuff, resin, colorant, grain, etc.
Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades. The powder passes the guide ring and enters the classifier chamber. As the classification wheel is in rotation, both air force and centrifugal force act on the powder. As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) has a greater mass, they are thrown back into the mill chamber to be ground again, while the particles whose diameters are smaller than the critical diameter enter cyclone separator and dust-collecting box.


Product Parameters of Pulverizer Machine
Model SED-1200CFS1-H
Production Capacity 600-1200kg
Feeding size <12mm
Crushing fineness 80-1000 mesh
Motor power 138kw
Spindle speed 2000rpm
Weight 4000kg
Dimension(L*W*H) 10000x2800x5000mm





Feature of Pulverizer Machine​

1)Simple structure, easy in installation and maintenance.
2)Adopting advanced world famous brand motor, electric parts, bearing and operation parts.
3)No dust during production, and dust can be collected in dust collecting box.
4)No need screen, particle size can be changed by change speed; particle size varies from 80 to 600 mesh.
5)Around mill chamber and bearing, there is water-cooling jacket to cool the machine.
