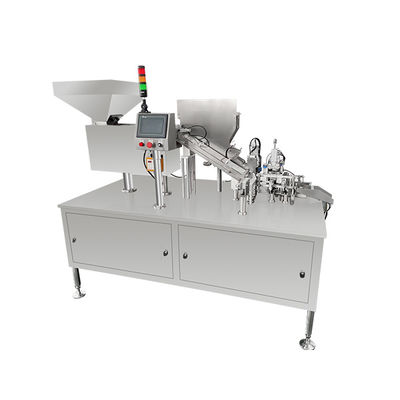

Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing

Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing
Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing

Large Image :  Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-40PTG
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 35 days after receiving the deposit
Payment Terms: T/T,L/C,MoneyGram,Cash
Supply Ability: 30 Sets per month

Horizontal Type Plastic Tube Bottling Machine For Effervescent Tablet Packing

Description
Highlight:

tube filling sealing machine

,

automatic tube filling sealing machine

,

Horizontal Plastic Tube Bottling Machine

Machine Introduction

SED-40PTG Automatic Effervescent Tablets Tube Filling Machine assists in packaging effervescent tablets in layers inside a tube. It can automatically give alarms and shut down in case of no tablets, tubes or caps, and all effervescent tablets touching material use SUS316 stainless steel. It is the most ideal equipment for effervescent tablet packaging in Pharmaceutical, Food and Beverage, Cosmetic and other manufacturing industries.

Working Principle



The vibrating system conveys the tablets out of the hopper by vibration. When the tablets pass through the sieving unit, the powder on the surface of the tablet and debris are screened out, and qualified tablets are sent into track automatically according to setting quantity. After tablets are arranged neatly, they are pushed into the tube horizontally. Then the tube flip mechanism turns the tube from horizontal to vertical and enters the capping process. If there is no tablet or few tablets, the tube will not be capped, and will be automatically rejected.



Features

Cap Feeding Unit

The cap feeding unit automatically feed the caps from the hopper to capping position.

It works with the help of a vibration system which allows it properly align the caps.

Tablet Feeding Unit

It assists in placing the tablets automatically into the machine via the material hopper.

After placing the tablets on the tablet feeding unit, it will automatically send them to the filling position.

Tablet Inserting Unit

This unit automatically sends the tablet into the tube as the filling process continues.

It has a sensor that will ensure the tube is full and the right number of tablets are filled.

Tube Feeding Unit

After manually placing the tubes into the hopper in the same direction, the machine will conveys the tubes to filling position, waiting for loading tablets.

Cap Pressing unit

When it detects the presence of a tube and tablets are loaded, it will automatically place a cap over the tube and press it.

If there is no tablet or few tablets, the tube will not be capped, and will be automatically rejected.

Technical Parameters

Model Name

SED-40PTG

Capacity

20-40 tubes/min

Application

Diameter of Tablet: Ø25mm

Thickness of Tablet: 5-6.5mm

Loading Quantity: 10-20 pcs/tube

Height of Tube: 89-144mm

Diameter of Tube: 29mm

Voltage

220V  50HZ  Single Phase

Power

1.5KW

Compressed Air

0.5-0.6MPa

Air Consumption

0.28m3/min

Weight

640kg

Overall Dimension (L*W*H)

2022*1717*1480mm

Remark: This machine can only be used for only one tablet diameter and tube diameter, but the thickness of tablet and the height of the tube can be changed by changing the optional mold.

This machine is equipped with a vacuum interface, and the diameter of the interface is Ø38mm. Customers need to prepare the vacuum cleaner by themselves.
