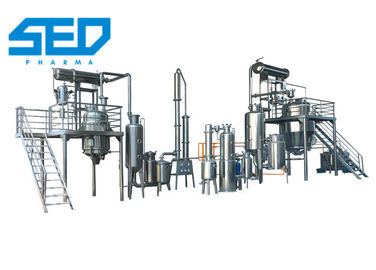

Herbal Oil Extraction Concentration Production Line With GMP Standard Type

Herbal Oil Extraction Concentration Production Line With GMP Standard Type

  • High Light

    herb oil extractor

    ,

    herb extraction machines

  • Name
    Herbal Oil Extraction Concentration Production Line With GMP Standard Type
  • Item Name
    High Efficiency Special Oil Extraction Equipment Line
  • Working Capacity Of The Extractor
    1000L
  • Total Volume Of The Extractor
    1100L
  • Input Liquid
    500~700kg (L)
  • Steam Consumption
    250~270kg/h
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-1TY
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    40 working days after receiving the deposit
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    30 Sets per month

Herbal Oil Extraction Concentration Production Line With GMP Standard Type

Herbal Oil Extraction Concentration Production Line With GMP Standard Type



Technical data of Extraction Equipment:



Working capacity of the extractor 1000L
Total volume of the extractor 1100L
Input liquid 500~700kg(L)
Heating area of the main tank 4m2
Cooling area of the condenser 11m2
Steam consumption 250~270kg/h
Circulation water for cooling ~10T/h
Dimension 2700×3100×4700mm



Brief introduction of Extraction Equipment



SED-1TY High Efficiency Special Oil Extraction Equipment Line suits for extraction of herbal material, such as rose oil, zedoary turmeric oil, star anise oil, litsea cubeba oil, patchouli oil, peppermint oil, lavender oil.



It is easy for operating and with high oil extraction rate. It meets for GMP standard.



Machine Features of Extraction Equipment:



1.It adopts the steam distillation tank for water extraction(wet steaming), heated by jacket and steam generator. It can completely eliminate rust taste, and the color difference technology problems of fragrant essential oil.



2.Please mixing at regular time when the wet steaming, make the herbal(such as rose and water fully mixed) and improve the finished oil rate.



3.Make the vapor liquid cooling more rapidly and thoroughly though the condenser and the cooler. The high precision inner surface makes the oil condensate flow smoothly.



4.Whole body stainless steel, save area and easy operation.



Working Of Solvent Based Extraction Equipment



A piece of solvent-based extraction equipment uses solvents such as CO2, alcohol/ethanol, and hydrocarbons like butane/propane.



These machines operate using the below general steps:



First, the raw material or matrix is soaked in the solvent. For maximum extraction, the material is first grounded.


The resulting solution, made up of the solvent and the components meant to be extracted, is then evaporated using heat and vacuum. The resulting substance from this step is a crude extract.


Finally, the crude extract can either be distilled or is further refined to create a purified final extract.
All the solvent-based extraction equipment is designed to accommodate all of the above procedures.



However, some may lack parts to carry out steps . In such a scenario, other machines can be attached to a solvent-based extraction to ensure it performs all the above three steps.



Photo Show of Extraction Equipment

Herbal Oil Extraction Concentration Production Line With GMP Standard Type 0

Application of Extraction Equipment

1.as a common product in producing Chinese tradition medicine, is often used to extract effective ingredients from animals and plants and perfume oil in such fields as pharmaceutical manufacturing, biology, food, chemical industry etc.


2.suitable for containing high grease composition of plant leaves, flowers, grass and animal material in conventional oil, essential oil, fragrant oil composition of water distillation extraction process.
