Visual Inspection Equipment

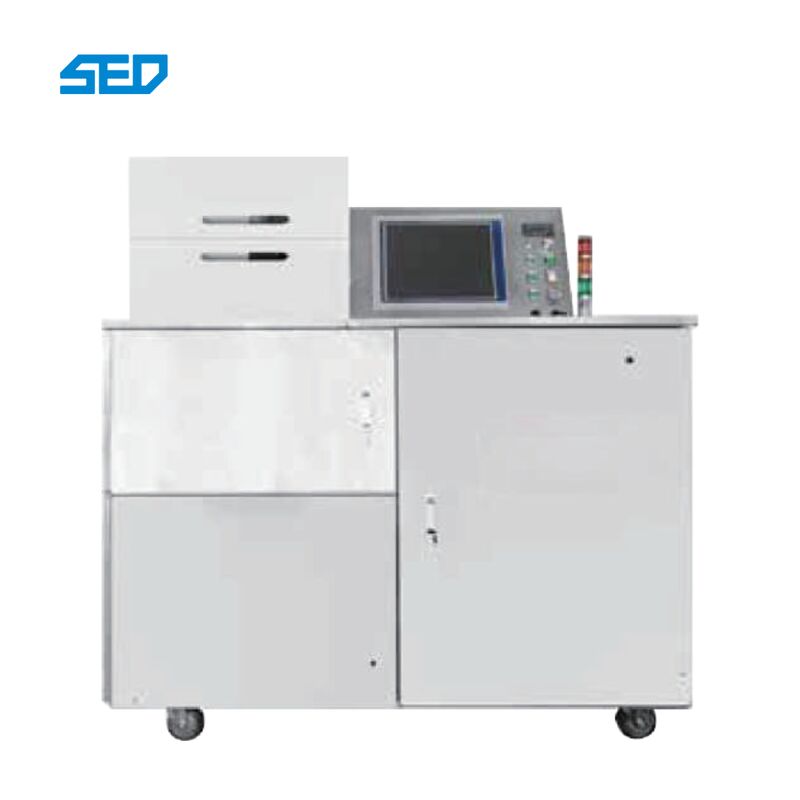

AOI Automated Optical Inspection 00# Capsule Inspection Machine
The SED-2333JSJT-Q is a professional-grade automated optical capsule inspection machine designed specifically for the pharmaceutical and health supplement industries.
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-2333JSJT-Q |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Automated Optical Inspection Capsule Inspection Machine
- Inspection Item
- Implement appearance defect detection for multiple types of capsules
- Applicable
- 00#, 0#, 1#, 2#, 3#, 4#
- Mean Time Between Failures
- 10,000 H
- Accuracy
- 0.2 MM
- Air Pressure
- 0.5 ~ 0.8 MPa
- Power Supply
- 220 V ; 50Hz
- Size
- 1600*800*1600 MM
- Weight
- 300 KG
- key word
- Capsule Inspection Machine, Optical Capsule Inspection System
Product Overview of Automated Optical Inspection Capsule Inspection Machine
The SED-2333JSJT-Q is a professional-grade automated optical capsule inspection machine designed specifically for the pharmaceutical and health supplement industries. Utilizing advanced imaging technology, this equipment can identify various appearance defects in hard capsules ranging from 00# to 4#, ensuring precise quality control.
With an inspection accuracy of up to 0.2 mm and a mean time between failures (MTBF) of up to 10,000 hours, it is an ideal solution for maintaining brand integrity and meeting stringent GMP standards.
Product Parameters of Automated Optical Inspection Capsule Inspection Machine
|
Model |
SED-2333JSJT-Q |
|
Inspection Item |
Black spots, bubbles, ruptures, holes, cracks, cuts, double sets, short caps, long caps, short bodies, long bodies, foreign objects, uneven thickness, single pieces, raw glue, mixing, wrinkling, plum blossom heads, concave tops, deformation, color mixing, etc |
|
Inspection Item |
Implement appearance defect detection for multiple types of capsules |
|
Applicable |
00#, 0#, 1#, 2#, 3#, 4# |
|
Mean Time Between Failures |
10,000 H |
|
Accuracy |
0.2 MM |
|
Power Supply |
220 V ; 50Hz |
|
Power |
2000 W |
|
Air Pressure |
0.5 ~ 0.8 MPa |
|
Size |
1600*800*1600 MM |
|
Weight |
300 KG |
|
Environment |
Temperature: 5°C–30°C; Relative humidity: <70% Rh |
|
Other Characteristics |
1. Real time display of capsule appearance quality and testing status |
Feature of Automated Optical Inspection Capsule Inspection Machine
Our system uses high-speed industrial cameras to eliminate human error. The SED-2333JSJT-Q automatically identifies and rejects capsules with the following issues:
- Surface Defects: Black spots, bubbles, raw glue, and color mixing.
- Structural Damage: Ruptures, holes, cracks, cuts, and deformation.
- Assembly Errors: Double sets, short/long caps, short/long bodies, and single pieces.
- Specialized Issues: Plum blossom heads, concave tops, and wrinkling.
- Contamination: Foreign objects and uneven thickness.
Show of Automated Optical Inspection Capsule Inspection Machine
![]()
