Electric Rotary Capsule Blister Packaging Machine With Automatic Type

Electric Rotary Capsule Blister Packaging Machine With Automatic Type

  • High Light

    blister tablet packaging machines

    ,

    pharmacy blister packaging machine

  • Name
    Electric Rotary Capsule Blister Packaging Machine With Automatic Type
  • Max. Forming Area
    260*250mm
  • Driven Type
    Electric
  • Voltage
    38V 50HZ(According To Clients' Requirement)
  • Max.Depth
    12mm
  • Heat Sealing Power
    3KW
  • Weight
    3000kgs
  • Speed
    60-180 Cuts/min
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-260GP
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    35 Days after receiving the advance payment
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    30 Sets per month

Electric Rotary Capsule Blister Packaging Machine With Automatic Type

Electric Rotary Capsule Blister Packaging Machine With Automatic Type



Main Technical Data of Blister Packing Machine:



Item Data
Speed(Standard Plate 80mm×57mm×3) 60-180cut/min
Capacity 10800-32400strip/hour
Scope 20-250 mm
Max. Forming Area 260*250mm
Max.Depth 12mm
Pre-Heating Power 2KW(×4)
Heat Sealing Power 3KW
Servo Motor Power 0.75KW X 2
Main Motor 1.5KW
Power and E-Consumption Three Phase 380V 50HZ(220V 60HZ)14.5KW
Air Consumption ≥0.6m3/min

Packing

Material

PVC 0.25X260mm
PTP 0.02X260mm
Overall Dimension 3130×975×1850mm
Size after packing 3900X1220X2150mm
Weight 3000Kg



Description of Blister Packing Machine:



The blister packing machine is a machine adopts in the lead position of quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable.



Feature of Blister Packing Machine:



1. Plate-type universal feeder although easy and not high effective, it is very extensively applied and suitable for large size and small size capsule, various tablets and pills.



2. High speed vibrating feeding. The feeder can suitable for any speed of the machine. Our Vibration Feeder adopts Stainless Steel tube for feeding, Suitable for GMP Standard.



3. High-precise servo stepping. The machine adopts Servo Motor for Running. So the speed adjusting and running will be more accuracy.



4. The machine is equipped Double Sealing makes the Sealing Perfect, no air run trough the seal.

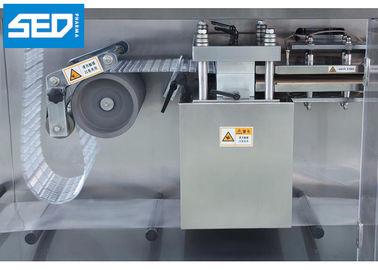

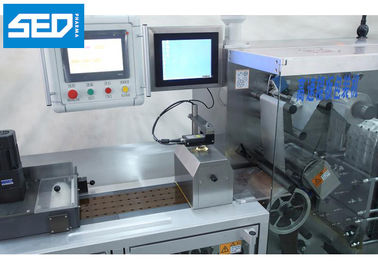

Photo show of Blister Packing Machine



Electric Rotary Capsule Blister Packaging Machine With Automatic Type 0Electric Rotary Capsule Blister Packaging Machine With Automatic Type 1Electric Rotary Capsule Blister Packaging Machine With Automatic Type 2



Application of Blister Packing Machine



Electric Rotary Capsule Blister Packaging Machine With Automatic Type 3

Maintenance of Blister Packing Machine



1. The aluminum-plastic blister packaging machine should be wiped, cleaned and kept clean frequently;


2. Regularly check the operation of the machine, find problems and deal with them in time;


3. Lubricate the aluminum-plastic blister packaging machine on time according to the lubrication requirements;


4. When the aluminum-plastic blister packaging machine is working, the water supply cannot be cut off in each cooling part. Before starting the machine, the water supply is first, and then the heating part is heated; when the production is terminated, the water supply is stopped after the heating part reaches the normal temperature;


5. The surface of the heat-sealing roller should be kept clean. When removing the attachments, use a fine copper wire brush under heating. At the same time, the operator should pay attention to the operating range and the distance between the hands, arms and body and the heating roller to avoid burns;


6. After the aluminum-plastic blister packaging machine is finished, first cut off the power supply, and after the heating components are cooled to normal temperature, then turn off the water and air sources;


7. When using or storing abrasives, avoid bumping and scratching, and do not contact with corrosive substances;


8. When the aluminum-plastic blister packaging machine is not used for a long time, the water in the waterway and airway should be blown out with compressed air, and all parts should be oiled and covered with plastic.





Electric Rotary Capsule Blister Packaging Machine With Automatic Type 4Electric Rotary Capsule Blister Packaging Machine With Automatic Type 5Electric Rotary Capsule Blister Packaging Machine With Automatic Type 6Electric Rotary Capsule Blister Packaging Machine With Automatic Type 7Electric Rotary Capsule Blister Packaging Machine With Automatic Type 8
