Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP

Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP
Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP

Large Image :  Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-220GP
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 35 Days after receiving the advance payment
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP

Description
Name: Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP Condition: New
Automatic Grade: Automatic Power: 14.5kw
Dimension: 3130*975*1850mm Scope: 20-250 Mm
Air Consumption: ≥0.6m3/min Speed: 60-180 Cuts/min
High Light:

blister packaging equipment

,

blister tablet packaging machines

Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP



Main Parameter of Blister Packaging Machine

Model SED-220GP
PVC Non-toxic PVC Thickness 0.25 X Width≤220(mm)
PTP Aluminum Foil
PVC & PTP
Thickness0.02 X Width ≤220(mm)
OD of Reel< φ400mm
Dia of Reel Core:φ70~80(mm)
Cutting speed(3 Gears) 40~120times/min
Packing Efficiency Capsules:11-17 ten thousand/h
Tablets:15-30 ten thousand/h
Overall Dimensions (LXWXH)3140mmX940mmX1600
Weight 4000Kg
Installed Power 12.5Kw 380V 50Hz/220V 60Hz



Product introduction of Blister Packaging Machine​



The blister packing machine is a machine adopts in the lead position of quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable.



main features of Blister Packaging Machine​



1. Plate-type universal feeder although easy and not high effective, it is very extensively applied and suitable for large size and small size capsule, various tablets and pills.



2. High speed vibrating feeding. The feeder can suitable for any speed of the machine. Our Vibration Feeder adopts Stainless Steel tube for feeding, Suitable for GMP Standard.



3. High-precise servo stepping. The machine adopts Servo Motor for Running. So the speed adjusting and running will be more accuracy.



4. The machine is equipped Double Sealing makes the Sealing Perfect, no air run trough the seal.



Working Principle of Blister Packaging Machine​



The working principle of the aluminum-plastic blister packaging machine is to heat the PVC to the set temperature through the PVC heating device.



The flat positive pressure blister forming device blows the heated and softened PVC into a smooth blister, and then fills the material through the feeding device.



There are nested pressing rollers to press the formed PVC foam tape into the corresponding pockets of the heat-sealing aluminum cylinder synchronously and straightly, and then the aluminum foil and PVC are heat-sealed by the roller heat-sealing device.



Product Show of Blister Packaging Machine

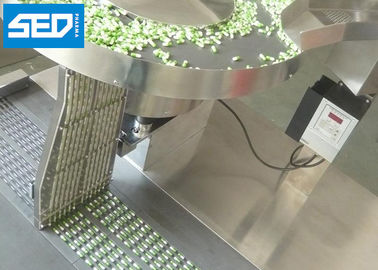

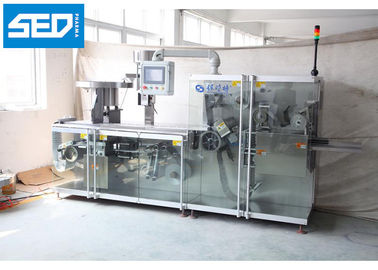

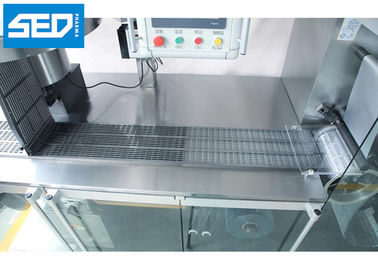

Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP 0

Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP 1Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP 2



Application of Blister Packaging Machine

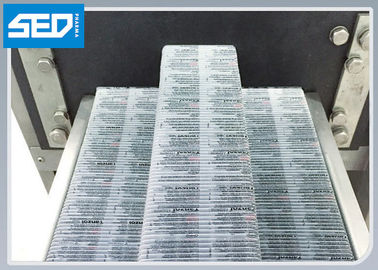

Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP 3

Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP 4Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP 5Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP 6Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP 7Automatic Roller Type Pharma Blister Packaging Machine With SED-220GP 8
