Analysis of the reasons affecting the counting accuracy of the capsule counting machine

April 30, 2021

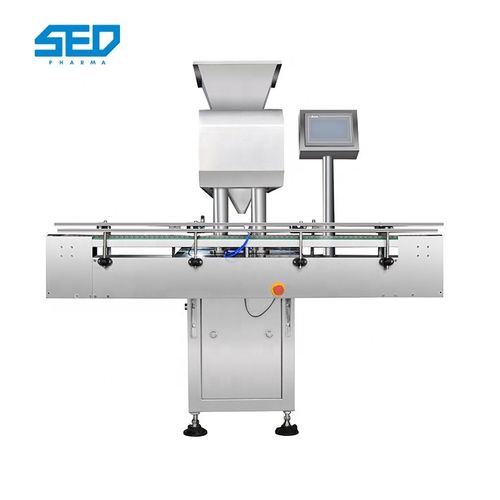

Latest company case about Analysis of the reasons affecting the counting accuracy of the capsule counting machine

1. Human factors:
①The operator did not preheat the machine before starting the machine in accordance with the requirements of the operating regulations,
② During the operation of the machine, the operator did not replenish the material in the silo in time, which directly affected the separation state of the material on the oscillating plate, and eventually led to inaccurate product counts.

latest company case about Analysis of the reasons affecting the counting accuracy of the capsule counting machine  0

2. Factors of the machine:
①The silo design does not take into account that the change of gravity will affect the fluidity and sorting of the materials in the oscillating plate. Because the more the material, the higher the center of gravity of the material, which will increase the fluidity of the material, causing overlapping materials to enter the detection channel before they can be separated, resulting in inaccurate counts. As the material decreases, the lowering of its center of gravity will reduce the fluidity of the material, which may cause the speed of counting particles to slow down.
②The drop between the memory baffle and the shattering shield is too large, and the material is too long when falling, and the material rotates in the shattering shield and cannot fall into the packaging bottle in time, resulting in inaccurate counting.
⑶Because the shattering shield of the capsule counting machine is made of plexiglass material, when the material falls freely from the detection channel, it rotates and rubs at high speed in the shield to generate static electricity. Another reason is that some Chinese medicine ingredients are particularly prone to static electricity during the friction process. Due to static electricity, the material is adsorbed on the shattering shield, so that the effective number of falling into the bottle is reduced, causing the number of particles to be inaccurate.
⑷The memory baffle is not pushed out in place and can not completely block the material. When the memory baffle is opened, there is still material passing through the memory baffle, causing inaccurate counting of particles.
⑸The position of the shattering guard is not correct, and it cannot completely jam the bottle mouth, causing the material to not all fall into the packaging bottle smoothly, resulting in inaccurate counting.
⑹When the machine is installed and adjusted, the horizontal adjustment of the oscillating plate is tilted forward, so that when the oscillating plate stops vibrating, the material will naturally fall into the detection channel and cause false counting.

3. Material factors:
①The setting oscillation frequency of the three-stage oscillating plate for the production of capsules, tablets and pills is completely different.
②Due to the large amount of dust in the materials during the production of tablets and capsules, the accumulation of dust in the detection channel blocks the infrared rays, which makes the counting circuit unable to work normally.

4. Medium factor:
① The influence of environmental factors on counting accuracy mainly comes from the quality of compressed air. Compressed air with a large water content has a greater impact on the sensitivity of the actuator cylinder-once the sensitivity of the cylinder decreases-the accuracy of counting cannot be guaranteed

5. Parameter setting factors of capsule counting machine:
① The size of the silo gate has a great influence on the separation state of the material on the oscillation plate. The gate is too large and the material flows out too fast. The material flows out too fast. The material will overlap. When the overlapped material passes through the detection channel, the counting will be affected. The accuracy of  is too small and affects the counting speed.
② Setting of the oscillation frequency of the three-stage oscillation board. If the material is set too fast and cannot be separated effectively, it will affect the accuracy of the counting. If it is too slow, it will affect the production speed.
③Setting of product length and minimum parameters. The appearance size of the product is directly related to the light time and shading time of the infrared detection channel. Brightening time is the time between grains. The shorter the brightness time, the higher the resolution, the shading time is determined by the appearance of the product, and the shading time is set too long, which will result in fewer counts. If the shading time is set too short, the counter will be unclear and the rejection will affect the counting speed.
④The value of the expected number is set-the expected number is to make the machine continue to count the particles to increase the production capacity after the machine has finished counting the pellets when the bottle is replaced. When the last pill is detected, all the pill will fall into the detection track. The memory file will block them. After the empty bottle reaches the shattering shield, the pre-counted pill will fall into the bottle. in. The parameter setting of the predicted number is too small to have an impact on the counting speed, and too large has an impact on the accuracy of the counting.
⑤ Setting of counting speed. If the parameter is set too small, the product will be sufficiently separated on the oscillating plate, which is beneficial to improve the accuracy of counting. But it is not conducive to increasing the production speed. If the setting is too large, the product will not separate well on the oscillating plate, which has a serious impact on the accuracy of counting.
⑥ Setting of separation speed. The separation speed refers to the separation speed between the last product in the previous bottle and the first product in the next bottle. The separation speed is too fast-the memory baffle will not be able to separate the product between the previous bottle and the next bottle-causing one more or one less particle phenomenon-the separation speed is too slow and affects the production speed

6. Decrease factors of cylinder sensitivity:
As the executive element of the capsule counting machine, the reaction time directly affects the accuracy of counting. The main reasons for the decrease in cylinder sensitivity are: the moisture content in the compressed air-non-cylinder grease-impurities enter the cylinder.
