Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine

Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine

  • High Light

    40pcs/min Pharmaceutical Machinery Equipment

    ,

    304 SS Pharmaceutical Equipment

    ,

    1.2kw Pharmaceutical Equipment

  • Name
    Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine
  • Bottle Diameter
    20-80mm
  • Voltage
    220v 50hz
  • Power
    1.2kw
  • Weight
    69kg
  • Size
    1300*900*1550mm
  • Labeling Speed
    20-40pcs/min
  • Tag Range
    Width 10-100mm,length 15-300mm
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-100MT
  • Minimum Order Quantity
    >=1 Pieces
  • Price
    $2,300.00/ Piece
  • Packaging Details
    Export standard packing
  • Delivery Time
    Est. Time(days)-15-To be negotiated
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    30 Piece/Pieces per Month

Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine

Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine

Machine Parameters of Bottle Labelling Machine


Speed20-40pcs/min (depends on actual size of the bottles and labels)
Bottle Diameter20-80mm
Accuracy1mm
Voltage220v 50hz
Power1.2kw
Weight69KG
Size1300*900*1550mm


Product Overview of Bottle Labelling Machine

1. Applicable to the pharmaceutical, food, cosmetic and other industries, the circumference of the round object and high precision are (double standard) and the fixed point and position on the back label; Can also meet with taper product labeling requirements.

2. The advanced affinity man-machine interface system, easy operation, complete function, has the rich online help function.

3. Unique bottle at three-point position, avoid to linear labeling machine labeling bottle is irregular, and the bottle is not caused by the error of vertical labeling skew, then it let labeling more accurate, beautiful, caresses.

4. Automatic photoelectric detection, it has the function that nothing come from conveyor and no stick label and without label automatic correction or alarm automatic detection function, prevent leakage and waste.

5. The machine structure is simple, compact, easy to operation and maintenance.

Feature of Bottle Labelling Machine​

1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.

2) Operation system: The man machine control 7 inch touch screen, directly visual interface easy operation, rich with help
function and fault display function.

3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher
requirement for worker.

4) Send label system: German Avery labeling engine control system, stable with high speed.

5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high
corrosion resistance and never rust.

7) Low voltage circuit all use the German Schneider brand.


Show of Bottle Labelling Machine​

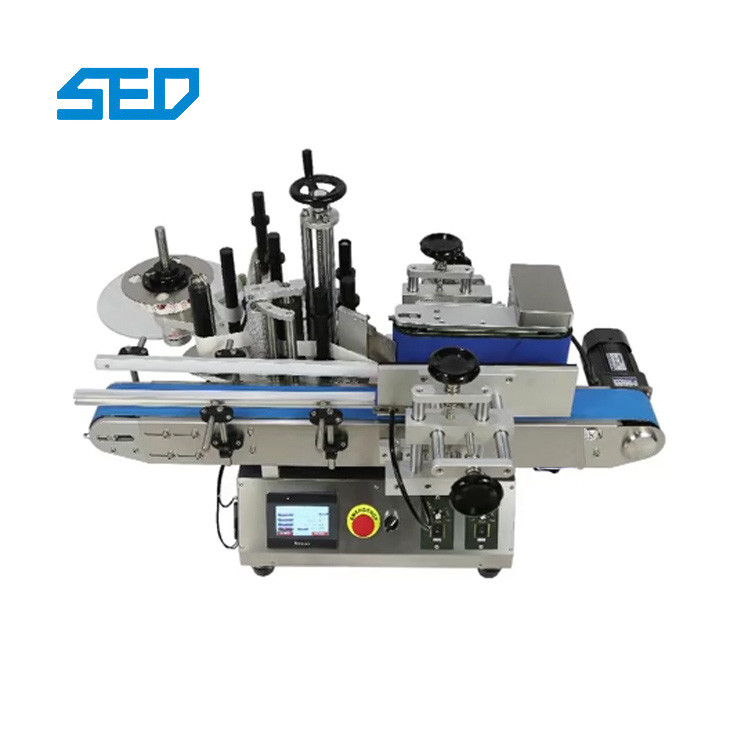

Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine 0
Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine 1Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine 2Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine 3

Application of Bottle Labelling Machine​
The machine can realize double-sided peripheral labeling and labeling functions at the same time, which can meet the requirements of flat bottle, square bottle and bottle-shaped single-sided and double-sided labeling, cylindrical full-circumference labeling, and half-circumference labeling. It is widely used in the cosmetics industry, Daily chemical industry.
Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine 4

Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine 5Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine 6Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine 7Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine 8Multifunctional Desktop Automatic Pharmaceutical Machinery Equipment Round Bottle Labelling Machine 9
