Product Details:
|
| Name: | Stainless Steel Horizontal Automatic Labeling Machine 0-180 Bottle/min | Labeling Speed: | 0-180bottle/min |
|---|---|---|---|
| Labeling: | ±0.5mm | Applicable Label: | H: 15-90mm L:35-90mm |
| Applicable Bottle: | H:35-90mm Dia:10-30mm | Material: | SUS304 Stainless Steel |
| Weight(kg): | 1000kg | Key Word: | Automatic Labeling Machine，Horizontal Labeling Machine |
| High Light: | Horizontal Automatic Labeling Machine,Stainless Steel Automatic Labeling Machine,Bottle / Min Automatic Labeling Machine |
||

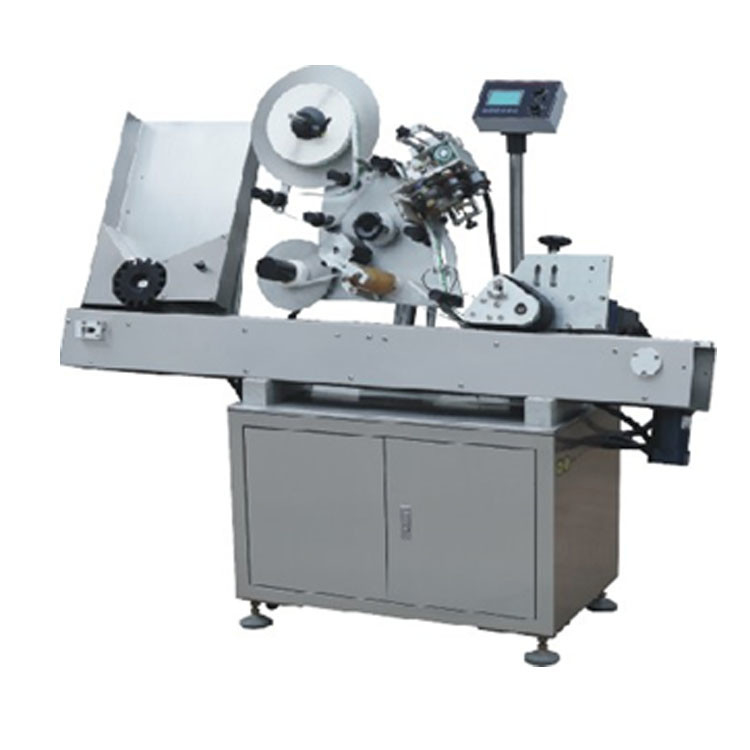

Stainless Steel Horizontal Automatic Labeling Machine 0-180 Bottle/min
The Scope of Application:
Applicable for round objects with smaller diameter whihc can not stand when labeling,such as ampoule ,vials,blood collection tube, pen,sausage and so on.
(P.S. our labeling machine can be designed according to your needs)
Machine Parameters of Labeling Machine
|
Model |
SED-180WT-E |
|
Labeling speed |
0-180bottle/min |
|
Labeling |
±0.5mm |
|
Applicable label |
H: 15-90mm L:35-90mm |
|
Applicable bottle |
H:35-90mm Dia:10-30mm |
|
Weight(kg) |
1000kg |
|
Dimension (L × W × H) |
1000*1300*1900mm |
Characteristics of Labeling Machine
Adopt mature technology PLC control system,operation is stable and high-speed;
Using touch-screen control operating system, simple and efficient for operation;
Advanced technology of pneumatic coding system, print the batch number and expiry date clearly;
Transmission-type rolling bottle device, make sure the label attached more firmly;
The damaged rate of bottle is less than 1/200000;
Advantages of Labeling Machine
Imported electric elements, stable performance, low failure rate;
Adopt photoelectric detection, PLC control system, software operation, conveyor belt,
label accurately with high precision;
No bottle no label, automatic alarm when achieve leakage label.
The whole machine use material S304 stainless steel and anodized senior aluminum alloy.
Products Show of Labeling Machine
