Product Details:
|
| Name: | Rotary Tablet Pressing Machine For Dishwasher Camphor | Model: | SED-200-5Y-B |
|---|---|---|---|
| Dies: | 5 | Max.Pressure(KN): | 60 |
| Max.dia.of Table(mm): | 20 | Motor(KW): | 2.2 |
| Max.filling Depth(mm): | 15 | Max.tablet Thickness(mm): | 6 |
| Capacity(Pcs/h): | 6000-9000 | Size(mm): | SED-200-5Y-B |
| Weight(kg): | 300 | Key Word: | Tablet Press Machine |
| Highlight: | 13500Pcs/h Tablet Press Machine,Rotary Camphor Tablet Making Machine,Bi Layer Tablet Press Machine |
||

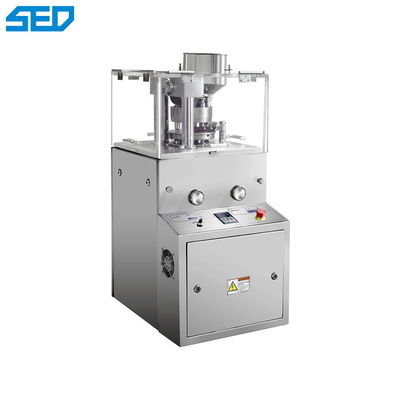

Rotary Tablet Pressing Machine For Dishwasher Camphor
Product Overview of Tablet Press Machine
This machine is a new generation product by our factory, and this machine is a single Roller continuous automatic tablet press for pressing various kinds of different shape tablets and plain tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic industries.
Technical Parameters of Tablet Press Machine
| Type | SED200-5Y-B |
| Dies | 5 |
| Max. pressure(kn) | 60 |
| Max. Dia.of Tablet(mm) | 20 |
| Max. Depth of Fill(mm) | 15 |
| Max. Thickness of Tablet(mm) | 6 |
| Turret Speed(r/min) | 20-30 |
| Production Capacity(pc/h) | 6000-9000 |
| Motor(kw) | 2.2 |
| Overall Size(mm) | 480*630*1100 |
| Net Weight(kg) | 300 |
Features of Tablet Press Machine
1. The outside part of the machine is fully-enclosed and it’s made of stainless steel to meet GMP standard.
2. It has transparent windows so that press condition can be observed clearly and windows can be opened.
3. Both can press round and shaped tablets, and have impressed letters on both sides. And double color tablet is available.
4. All the controller and devices are located in one side of the machine, so that it can be easier operate.
5. An overload protection unit is included in the system to avoid the damage of punches and apparatus when overload occurs.
6. The machine’s worm gear drive adopts fully-enclosed. Oil-immersed lubrication with long service life to avoid cross pollution.
Application of Tablet Press Machine
This machine is a single-press/doule-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
