Product Details:
|
| Name: | Double Press Automatic Rotation Shape Pressing Equipment For Pharmaceutical Industry | Turret Rotary Speed: | 30rpm |
|---|---|---|---|
| Max Tablet Diameter: | 30mm | Max Filling Depth: | 15mm |
| Max.Tablet Thickness: | 6mm | Capacity: | 20000 Tablets Per Hour |
| Motor: | 3kw | Weight: | 1000kgs |
| Material: | Stainless Steel | Key Word: | Tablets Pressing Machine |
| Highlight: | machinery for pharmaceutical industry,pharma process equipment |
||

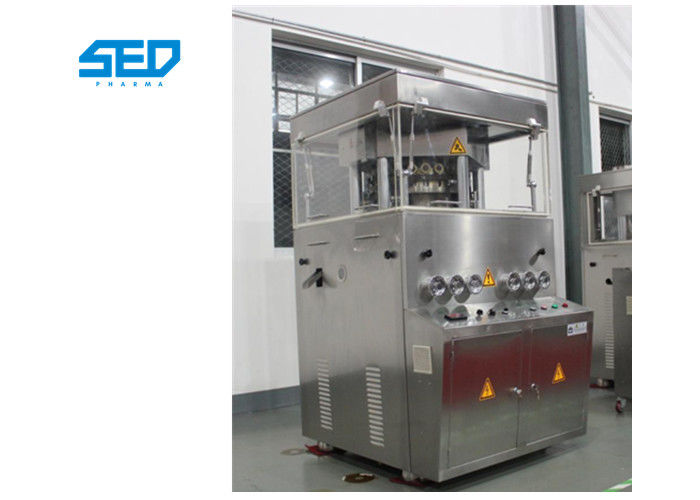

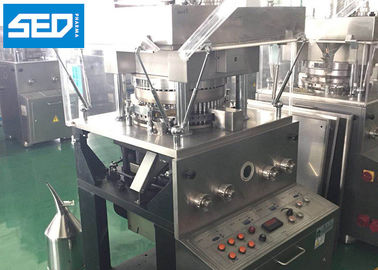

Product Overview of Tablet Press
This machine is a double press automatic rotation for shape-pressing equipment, which have the function of press the grain material or powders to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc.
which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Product Parameters of Tablet Compression Machine
| Punch Station | 15 Punches |
| Max Compression | 60 KN |
| Max Diameter of Tablet | 30mm |
| Max Filling Depth | 15mm |
| Max Thickness of Tablet | 6mm |
| Rotary Speed | 30rpm |
| Max Capacity | 20000pcs/hour |
| Motor | 3kw Power:380V/50HZ |
| Dimension | 890×620×1500 mm |
| Weight | 1000 KGS |
Feature of Tablet Making Machine
1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.
2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
3. It is adopts the import Frequency Timing with Electromagnetism Clutch.
4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust
Application
Mainly used in chemical, food, electronics and other pharmaceutical industry enterprises.
