Stainless Steel 80bags/Min 0.7Mpa Pillow Type Packing Machine

Stainless Steel 80bags/Min 0.7Mpa Pillow Type Packing Machine

  • High Light

    80bags/min pillow type packing machine

    ,

    0.7mpa pillow type packing machine

    ,

    0.7mpa pillow packing machine

  • Name
    Stainless Steel 80bags/Min 0.7Mpa Pillow Type Packing Machine
  • Product Name
    50-80 Bags Per Minute Pillow Type Packing Machine For 1-5 Blisters Per Bag
  • Material
    Stainless Steel
  • Color
    Nickel White
  • Production Capacity
    50-80bags/min
  • Air Compressed
    ≧0.7Mpa
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-350ZB
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    50-60 Days after receiving the deposit
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    20 Set per month

Stainless Steel 80bags/Min 0.7Mpa Pillow Type Packing Machine

Stainless Steel 80bags/Min 0.7Mpa Pillow Type Packing Machine



Main Technical Data of Bag Packing Machine



Product Name
50-80 Bags Per Minute Pillow Type Packing Machine For 1-5 Blisters Per bag
Material
stainless steel
Color
nickel white
Production capacity
50-80 bags/min
Air Compressed
≧0.7Mpa
Power Supply
380V 50HZ



Feature of Bag Packing Machine


1) Programmable control: It adopts PLC programmable controller to make running of the whole machine programmed.



2) Electronic Text Display: The information of the speed of machine,the set bag-length and the actual bag length and the packing output will be clearly displayed on the screen of display.



3) Automatic regulating of bag length: The alternation of packing length can be directly set through the display.It is very convenient and quick with an automatic adjustment.



4) Two-way compensation of Colour Code Detection: It adopts Imported photoelectric detecting sensor to detect the color code and can conduct automatic tracking through PLC computer program combined with two-way compensating mechanism,thus making the color code detection quick and accurate.



Product Description of Bag Packing Machine



This machine is on the base of multifunctional pillow-type Automatic Packing Machine and it is widely absorbing the advance technology from abroad and combing the real conditions at home.



strictly according to "GMP" requirements,this machine is a pioneering product in China which has been designed and developed specially for packing plasters,the machine collects jobs of making bags,plasted plaster,sealing four side, cutting, and packing product out-put, finished them a time.



It adopts controller to program operation, set of around photoelectric correct an error, two way compensation color code aligning, four sets of temperature controlled, cased freely ect.



The successful trial production of this machine has end the history of packing bags by hand.This machine is excellent in performance and high in technology content,which is the first choice of equipment for packing plasters automatically.

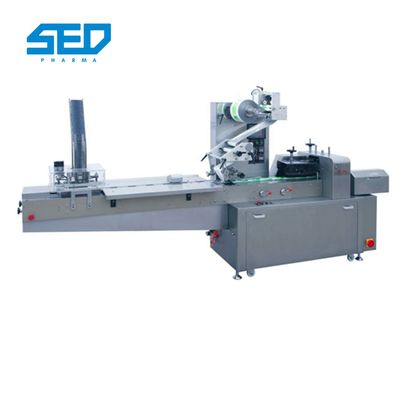

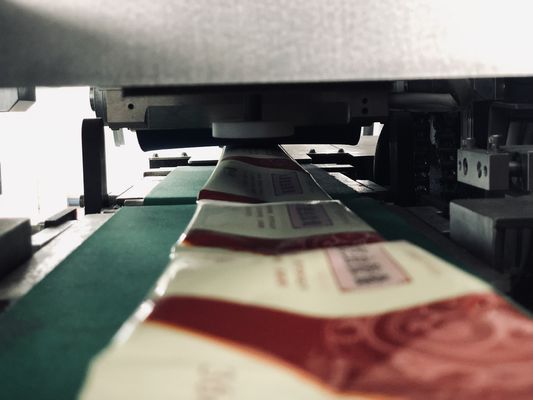

Photo show of Bag Packing Machine



Stainless Steel 80bags/Min 0.7Mpa Pillow Type Packing Machine 0

Stainless Steel 80bags/Min 0.7Mpa Pillow Type Packing Machine 1





Application of Bag Packing Machine

Stainless Steel 80bags/Min 0.7Mpa Pillow Type Packing Machine 2

Stainless Steel 80bags/Min 0.7Mpa Pillow Type Packing Machine 3Stainless Steel 80bags/Min 0.7Mpa Pillow Type Packing Machine 4Stainless Steel 80bags/Min 0.7Mpa Pillow Type Packing Machine 5Stainless Steel 80bags/Min 0.7Mpa Pillow Type Packing Machine 6Stainless Steel 80bags/Min 0.7Mpa Pillow Type Packing Machine 7
