Product Details:
|
| Name: | 3ph Automatic Detergent 4.5KW Liquid Packing Machine | Pouch Material: | Laminated Film |
|---|---|---|---|
| Pouch Pattern: | Flat Pouch ,stand-up Pouch | Scope Packaging: | 100-500ml |
| Pouch Size: | W:100-210mm L:100-350mm(Adjustable) | Speed: | 10-60pouches/min(The Speed Depends On The Product Status And Filling Weight) |
| Weight: | 1900KGS | Voltage: | 380V 3PH 50HZ/60HZ |
| Total Power: | 4.5KW | Compress Air: | 1m3/min(supply By User) |
| Material: | Stainless Steel | Key Word: | Liquid Packing Machine |
| Highlight: | 3ph liquid packing machine,3ph detergent packing machine,4.5kw liquid packing machine |
||

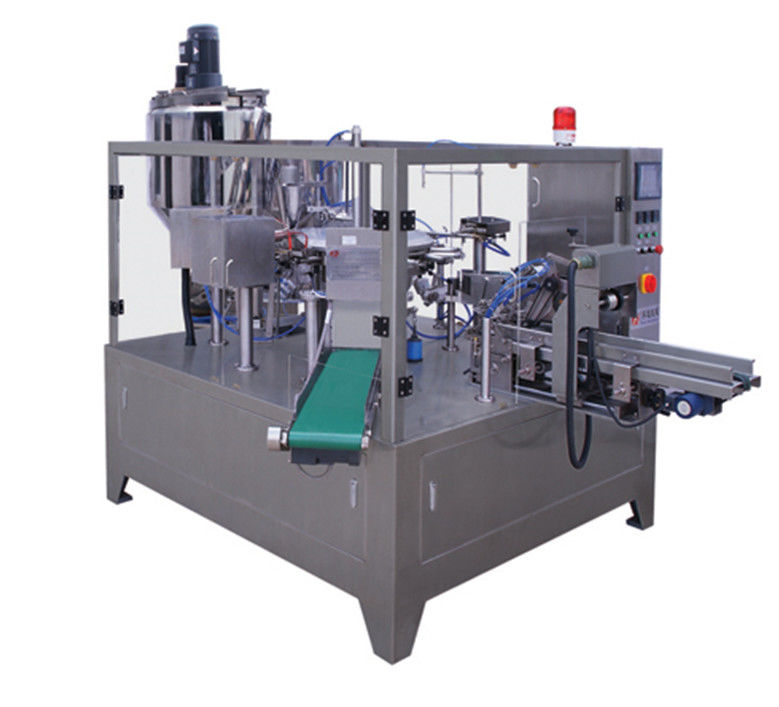

3ph Automatic Detergent 4.5KW Liquid Packing Machine
Product Overview of Liquid Packing Machine
Specialized In Liquid And Thick Liquid Packing Machine :The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification,and the packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper,with different feeders changed to pack solid, liquid, thick liquid ,powder and so on.
Product Parameters of Liquid Packing Machine
|
Working position
|
Eight-working position
|
|
Pouch material
|
Laminated film
|
|
Pouch pattern
|
Flat pouch ,stand-up pouch
|
|
Scope packaging
|
100-500ml
|
|
Pouch size
|
W:100-210mm L:100-350mm(Adjustable)
|
|
Speed
|
10-60pouches/min(The speed depends on the product status and filling weight)
|
|
Weight
|
1900KGS
|
|
Voltage
|
380V 3PH 50HZ/60HZ
|
|
Total power
|
4.5KW
|
|
Compress air
|
1m3/min(supply by user)
|
Feature of Liquid Packing Machine
1. Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2.Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
3.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
5.The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
6.It matchs with the glass safty door. At the same time, it could prevent dust.
7. Use the plastic bearing, don't need put on oil, less pollution.
8. Use no oil vacuum pump, avoid polluting the environment in the production.
9. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
10. Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
11. With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
12. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.

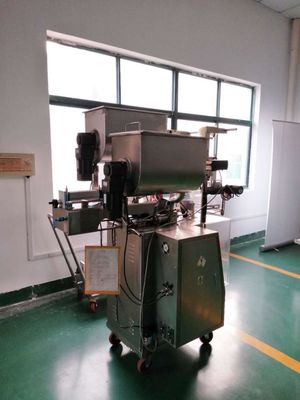

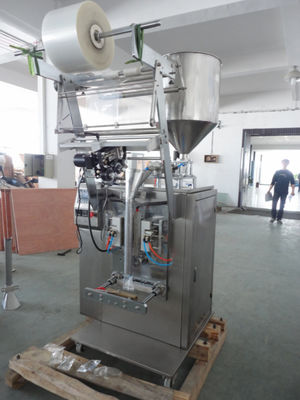

Show of Liquid Packing Machine
Application of Liquid Packing Machine
This automatic pouch liquid packing machine is suitable for different kinds of liquid products. Such as juice, honey, ketchup, sauce, meat sauce, edible oil, jam, sample cosmetics, shower gel, shampoo, medicinal liquid, chemical liquid, etc.
