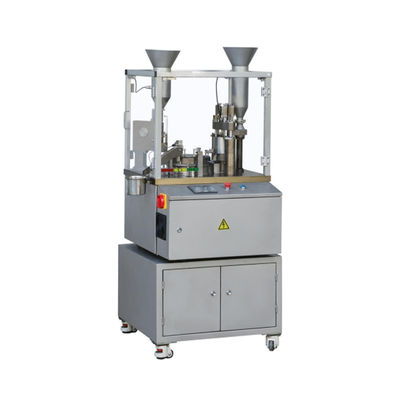

Automatic Capsule Filling Machine for Laboratory Use with 7200 capsules/hour Capacity and Modular Station Design

Large Image : Automatic Capsule Filling Machine for Laboratory Use with 7200 capsules/hour Capacity and Modular Station Design

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-120J-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C,MoneyGram,Cash
Supply Ability:	30 Sets per month

Contact Now

Automatic Capsule Filling Machine for Laboratory Use with 7200 capsules/hour Capacity and Modular Station Design

Description

Name:	Laboratory Capsule Filler Automatic Capsule Filling Machine	Machine Weight:	140kg
Overall Dimension:	730 × 700 × 1500mm	Motor Power:	0.7kw
Power Supply:	AC 220V, 50Hz	Capacity:	7200 Capsules/h
Capsule Size:	00#～5# And Safety Capsule A～E	Key Word:	Powder Capsule Filling Machine Automatic Capsule Filling Machine
Highlight:	0.31KW oil capsule filling machine , Ss304 Oil Capsule Filling Machine , 0.5MPa Oil Capsule Filling Machine

Laboratory Capsule Filler Automatic Capsule Filling Machine

Product Description

The SED-120J-I Automatic Capsule Filling Machine is designed for pharmaceutical and nutraceutical industries to efficiently fill empty hard gelatin capsules of various sizes with powders and pellets (optional). This precision equipment automatically orients, opens, fills, and closes capsules with consistent accuracy.

All medicine-contact spare parts are constructed from superior SS 304 materials that comply with GMP requirements, ensuring pharmaceutical-grade quality and durability.

Technical Specifications

Model	SED-120J-I
Capacity	7200 capsules/hour
Suitable Capsule Sizes	#00 ~ #5, Safety Capsules A ~ E
Capsule Using Rate	≥ 99.5%
Dosage Difference	≤ ±3% (under specified conditions)
Power Supply	AC 220V, 50Hz
Motor Power	0.7 kW
Working Noise	≤ 75 dBA
Machine Dimensions (L×W×H)	730 × 700 × 1500 mm
Weight	140 kg
Control System	Frequency conversion speed regulation

Key Features

Designed for R&D and experimental use, ideal for small batch production
Siemens S7-200 SMART PLC + WEINVIEW touchscreen for intelligent control
Japanese Nippon Thompson bearings ensure long-term operational accuracy
Modular station design supports both powder and pellet (optional) filling
GMP-compliant construction with SS 304 material for all medicine-contact parts
Compact structure optimized for laboratory environments
