Product Details:
|
| Name: | Hard Capsule Liquid Filling Machine | Model: | SED-260YJ-C |
|---|---|---|---|
| Dimension(L*W*H): | 1020×860×1970mm | Weight (KG): | 600kg |
| Filling Accuracy(%): | 99.5% | Capsule Size: | 00#～5# |
| Maximum Production Capacity: | 260pcs/m | Loading Difference: | Liquid Above 300mg≤±3% |
| Compressed Air: | 0.06m3/min 0.3Mpa | Key Word: | Powder Capsule Filling Machine Automatic Capsule Filling Machine |
| Highlight: | 0.3Mpa liquid capsule filling machine,0.06m3/min liquid capsule filling machine,5.75kw liquid capsule filling machine |
||

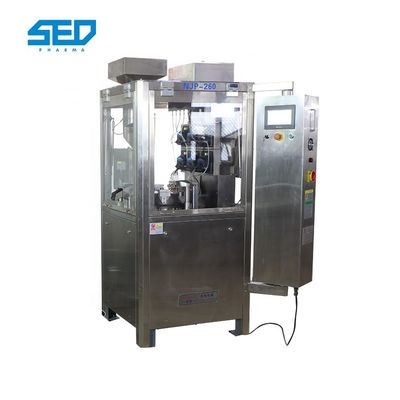

Hard Capsule Liquid Filling Machine
Product Description of Capsule Filling Machine
The liquid capsule filling machine is a new capsule filling machine specially designed for filling liquid, which fills the gap of liquid filling and sealing technology for hard capsules in China. This series of honey water liquid capsule filling machine, with accurate
loading and good sealing, improves the safety of the products in the process of storage, transportation and clinical application of products. This liquid capsule filler machinery has wide applicability.
Main Technical Parameters
| Model | SED-260YJ-C |
| Weight | 600KG |
| Overall dimensions | 1020×860×1970mm |
| Motor Power | 5.75kw |
| Power supply | Three-phase four-wire AC 380V; 50Hz |
| Capacity | 15600pcs/hour |
| Fillable capsule |
00#～5# Safety capsule A～E |
| Capsule sowing accuracy | ≥99.5％ |
| Working noise | ≤75dBA |
| Filling volume difference | Liquid above 300mg≤±3% |
| Compressed air | 0.06m3/min 0.3Mpa |
| Water source requirements |
The water ring vacuum pump is used for recycling with the water tank (It can also be connected to an external water source) |
| Vacuum | -0.02～-0.06 MPa |
| Water source | 250L/h |
| Inlet pipe inner diameter | 20mm |
| Drain pipe inner diameter | 27mm |
| Working temperature | 21℃±3℃ |
| Relative humidity of working environment | 40～55％ |
| Exhaust volume | 300m3/h |
Characteristic of Capsule Filling Machine
1.This series liquid capsule filling machinery capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil.
2.This pharmaceutical honey capsule filling machine has safety firs, all the working stations take full account of the personal safety, such as the door control and emergency stop switch.
3. Equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.
4. The liquid capsule filler machinery is precision mold concentricity, zero deviation, ensure that the capsule is not wiping, no damage.
5. All the parts of the contact drug of pharmacy equipment are made of stainless steel 316, and the waste device adopts seven lines of aero aluminum.
Application
