Product Overview of Sealing Machine
The process of tube sealing machine eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic sealing with the proper time setting and pressure is the fastest most reliable method for a variety of tube material sealing.
* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time
Product Parameters of Sealing Machine
| Ultrasonic Power |
2000W |
| Ultrasonic Frequency |
20KHz |
| MaterialPower Supply |
AC 220V, 50/60Hz |
| Delay Time/Weld Time/Seal Time |
0.01-9.99S |
| Stroke |
75MM |
| Working Pressure |
0.4-0.7Mpa |
| Tube Diameter Range |
10-50MM |
| Tube Height Range |
50-250MM |
| Filling Volume Range |
A: 5-60 ml B: 10-120 ml C: 25-250 ml D: 50-500 ml |
| Working Stations |
10 |
| Hopper Volume |
30L |
| Capacity |
20-35 tubes/min |
| Packing Dimension |
L*W*H 1310*1050*1760 mm |
| Gross |
460 KGS |
Feature of Sealing Machine
1. Automatic rotary table with 10 tube holders, servo motor control
2. Adopt digital ultrasonic circuit, stable output and performance
3. Machine body of stainless steel, meet with GMP requirement
4. PLC/HMI control, simple operation and parameters setting
5. Machine with mark searching function, more precise sealing
6. Main parts adopt imported components, Japan and Taiwan
7. Suitable for plastic tubes, composite tubes, PE tubes.
8. Compared with traditional type heat sealing method, the ultrasonic tube sealing has the following advantages:
* Fast Sealing, save time
* Sealing is nice looking, no plastic melting overflow
* Lower power consumption, energy saving

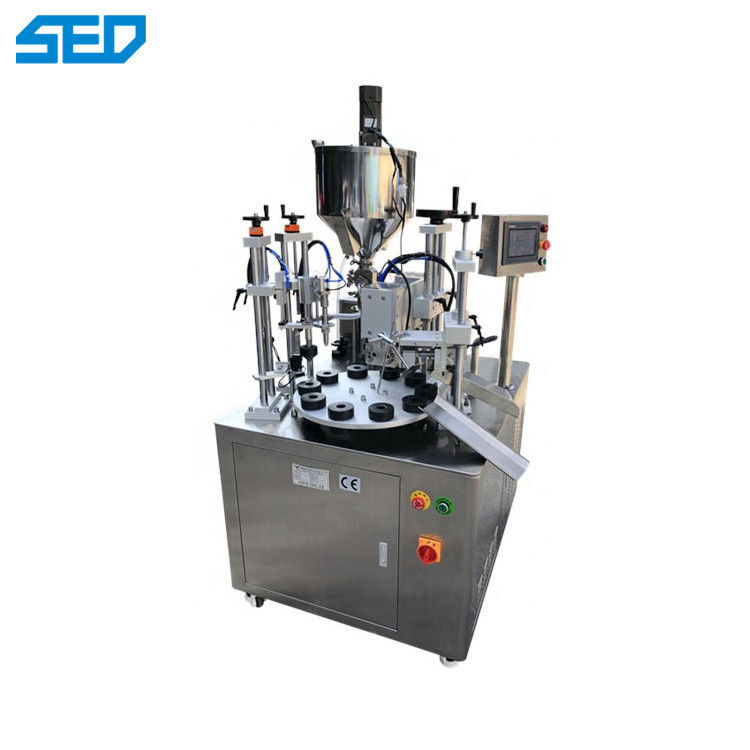

Show of Sealing Machine
Application of Sealing Machine
Especially suitable for the ointment, toothpaste, cosmetic, glue, adhesive, ketchup and art palette industries.
