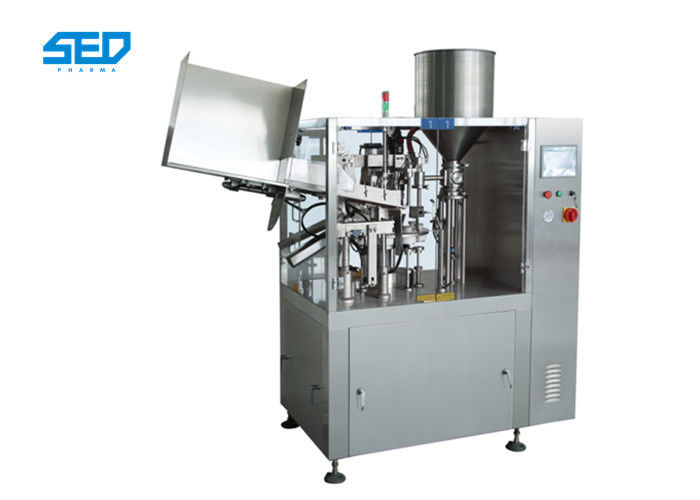

SED-60RG Cream Packing Plastic Tube Filling Sealing Machine Siemens Touch Screen Controlled
Main Technical Data:
Name | Data | |
Dimension (L×W×H) | 1950×1000×1800mm | |
Weight | 850Kg | |
Power supply | 50Hz/380V 3P | |
Main motor power | 1.1KW | |
Heating power | 3KW | |
Water chiller power | 1.5KW | |
Speed | 30-50/min/max | |
Filling range | 3-250ml | |
Tube length | 50-210mm | |
Tube diameter | 12-50mm |
Description:
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement.
PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically.
It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
Feature:
1) According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

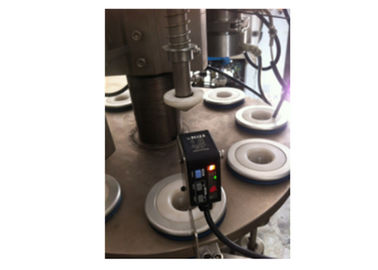

2) The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.
3) Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.

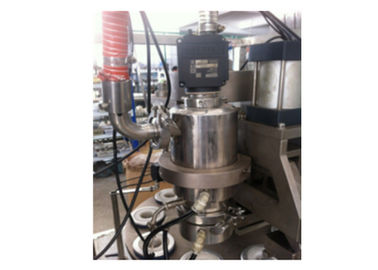

4) Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.
