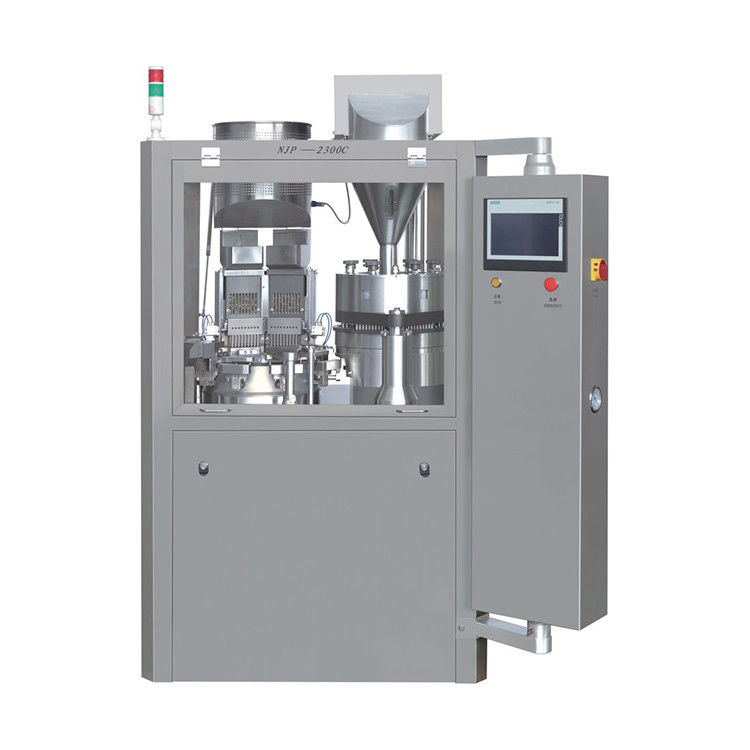

Pharmaceutical Capsule Filling Machine 400 Holes For Powder And Pellets

Pharmaceutical Capsule Filling Machine 400 Holes For Powder And Pellets

  • High Light

    capsule filling device

    ,

    capsule filling equipment

  • Name
    Pharmaceutical Capsule Filling Machine 400 Holes For Powder And Pellets
  • Model
    SED-NJP-400
  • Filling Dosage Form
    Powder, Granular,pellet & Tablet
  • Capsule Size
    No.00-No.5
  • Capsule Qualified Rate
    >99%
  • Filling Precision
    <±4%
  • Voltage
    380v/50HZ
  • Power (kw)
    3
  • Overall Size(mm)
    730*950*1700
  • Weight (kg)
    800
  • Place of Origin
    China
  • Brand Name
    SED-Pharma
  • Certification
    CE
  • Model Number
    SED-NJP-400
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiation
  • Packaging Details
    Wooden Case
  • Delivery Time
    35 Days after receiving the deposit
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    30 Sets per month

Pharmaceutical Capsule Filling Machine 400 Holes For Powder And Pellets

Pharmaceutical Capsule Filling Machine 400 Holes For Powder And Pellets



Main Parameter of Capsule Filling Machine



Model NJP200 NJP400 NJP600 NJP800 NJP1200 NJP2000 NJP3500
Filling dosage form Powder, granular,pellet & tablet
Production capacity (pcs/min) 200 400 600 800 1200 2000 3500
Capsule size No.00-No.5 No.00-No.5 No.00-No.5 No.00-No.5 No.00-No.5 No.00-No.5 No.00-No.5
Capsule qualified rate >99%
Filling precision <±4%
Voltage 380v/50HZ
Power (kw) 3 4 5 8 10.5
Noise (dBA) Lower 80
Overall size(mm) 610*670*1700 730*950*1700 840*960*1800 840*960*1800 910*980*1800 1160*1250*1900 1170*1560*2000
Weight (kg) 700 800 900 900 1100 1500 2200



Trait of Capsule Filling Machine


1) This machine runs as per automotive separating revert interval, feeding,removing useless capsule, clipping and coming capsule, cleaning mould are completed at same time, which has reach high precision and low noise levels


2) With the automatic controlled, the speed can be adjusted by frequency conversion. Digit display, the machine is easy to operate


3) This machine is with good suitability, high frequency for filling Chinese and western medicines. Which adopted more hole type working principle, exact calculating, the difference of packing are more advanced than its standard of governments pharmacopoeia


4) It is equipped with safety protection unit for people and machine. It can be automatically stopped when the material used up. It is good equipment for a pharmaceutical manufacturer



Product description of Capsule Filling Machine


NJP series automatic capsule filling machines are the advanced filling machines which are developed after absorbed many advantages of same kinds of machines inside and outside our country, which conform to GMP standard.



Working Principle of Capsule Filling Machine



The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:


1. Movement of the capsule
During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering disc hole. The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule



guide groove by its own gravity, and then the horizontal fork and the vertical plug are used to make the capsule cap upward and the capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.


2. Drug filling
The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body. After that, it



enters into the capsule rejection, capsule locking, finished capsule discharge, and module cleaning stations in turn, and then enters a new round of station cycle, and the cycle begins again and again.





Product Show of Capsule Filling Machine
Pharmaceutical Capsule Filling Machine 400 Holes For Powder And Pellets 0Pharmaceutical Capsule Filling Machine 400 Holes For Powder And Pellets 1Pharmaceutical Capsule Filling Machine 400 Holes For Powder And Pellets 2



Application of Capsule Filling Machine



Pharmaceutical Capsule Filling Machine 400 Holes For Powder And Pellets 3



Pharmaceutical Capsule Filling Machine 400 Holes For Powder And Pellets 4Pharmaceutical Capsule Filling Machine 400 Holes For Powder And Pellets 5Pharmaceutical Capsule Filling Machine 400 Holes For Powder And Pellets 6Pharmaceutical Capsule Filling Machine 400 Holes For Powder And Pellets 7Pharmaceutical Capsule Filling Machine 400 Holes For Powder And Pellets 8
