High-Speed 1200 Capsules/Min Automatic Capsule Filling Machine for Hard Gelatin Pharmaceutical Use

Large Image : High-Speed 1200 Capsules/Min Automatic Capsule Filling Machine for Hard Gelatin Pharmaceutical Use

Product Details:

Place of Origin:	China
Brand Name:	SED-Pharma
Certification:	CE
Model Number:	SED-NJP-1200

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C,MoneyGram,Cash
Supply Ability:	30 Sets per month

Contact Now

High-Speed 1200 Capsules/Min Automatic Capsule Filling Machine for Hard Gelatin Pharmaceutical Use

Description

Name:	High-Speed Hard Gelatin Capsule Filler Automatic Pharmaceutical Capsule Filling Machine	Model:	SED-1200J-H
Production Capacity(pcs/h):	1200 Capsules/min	Motor(kw):	380V 50Hz 3P
Net Weight(kg):	900kg	Overall Size(mm):	1020mm (L) X 860mm(W) X 1970mm(H)
Net Weight:	1200Kg	Material:	Stainless Steel
Key Word:	Powder Capsule Filling Machine Automatic Capsule Filling Machine
Highlight:	capsule filling device , capsule filling equipment

High-Speed Hard Gelatin Capsule Filler Automatic Pharmaceutical Capsule Filling Machine

Product Description

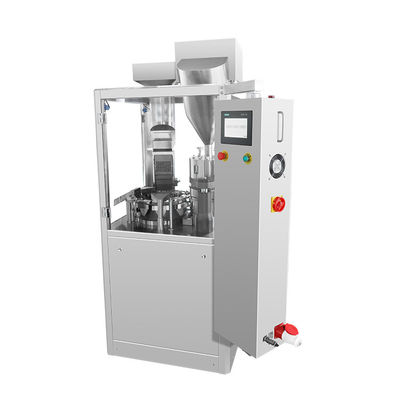

The SED-1200J-H Automatic Capsule Filling Machine is designed for the pharmaceutical and nutraceutical industries, capable of filling empty hard gelatin capsules of various sizes with powders and pellets (optional). It features a precision mold turntable with Japanese linear bearings, an underslung cam design, and Siemens touch screen + PLC control for intelligent operation and easy maintenance.

Technical Parameters

Model	SED-1200J-H
Capacity	1200 capsules/min
Filling Material	Powder, Granules
Die Hole Number	9
Power Supply	380V 50Hz 3P
Total Power	5.57KW
Application	00#-4# capsule
Filling Variation	±3% - ±4%
Noise	≤75dB(A)
Qualified Rate	≥99.5%
Overall Dimension	1020mm (L) x 860mm(W) x 1970mm(H)
Weight	900kg

Key Features

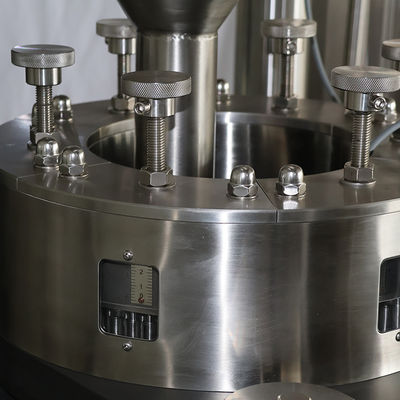

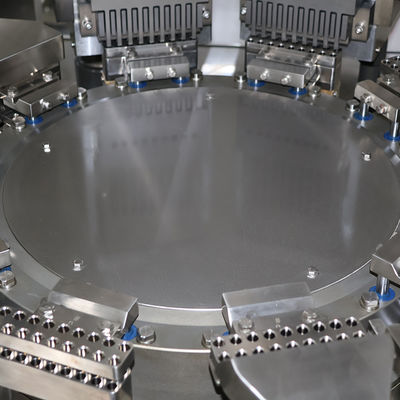

Precision Turntable: Equipped with original Japanese linear bearings for high accuracy and long service life.
Underslung Cam Design: Includes a pressure atomizing oil pump to reduce wear and extend component lifespan.
Integrated Column & Chassis: Ensures stable filling and accurate powder feeding.
3D Gap Adjustment System: Ensures uniform clearance under the dosage plate for precise filling and easy cleaning.

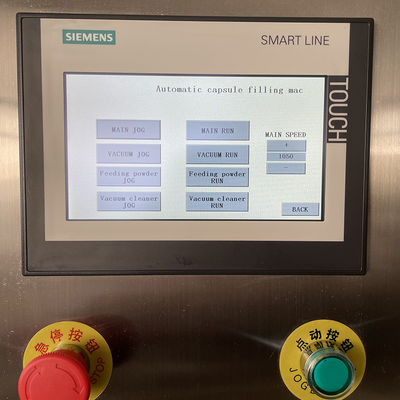

Intelligent Monitoring: Touch screen displays real-time capsule weight and cumulative output; auto alarm and stop in case of material shortage or channel failure.

Applications

The automatic capsule filling machine is mainly used for filling powder or pellet capsule medicines in medicine, hospital preparation rooms, health care products, and other industries.
