SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine

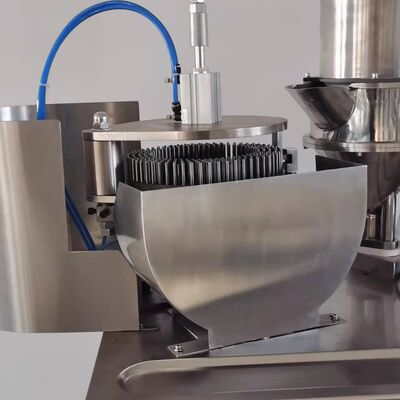

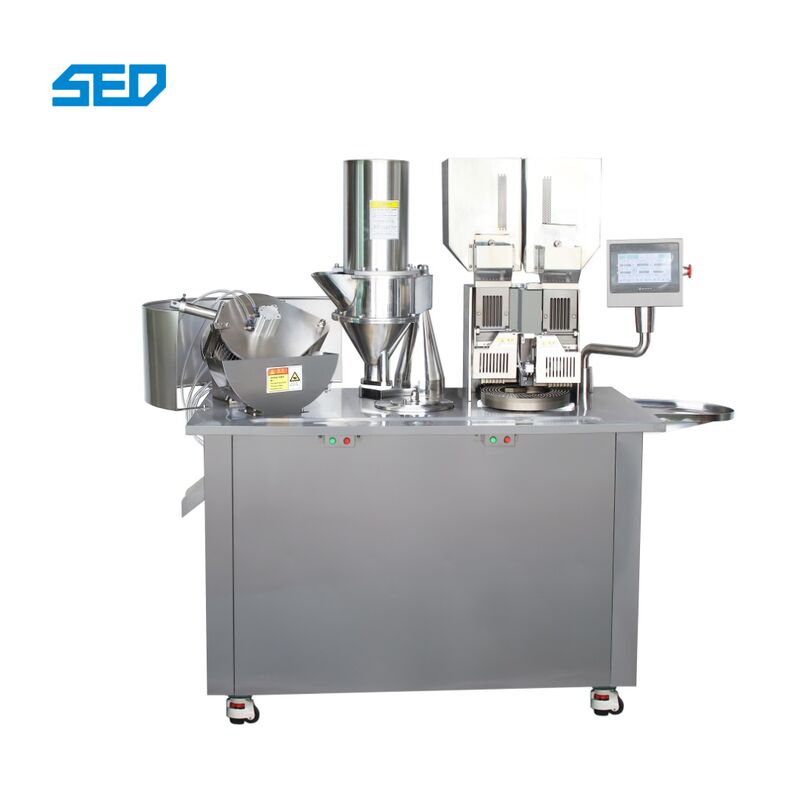

Large Image : SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine

Product Details:

Place of Origin:	China
Brand Name:	SED-Pharma
Certification:	CE
Model Number:	SED-BJ-IV

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C,MoneyGram,Cash
Supply Ability:	30 Sets per month

Contact Now

SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine

Description

Name:	SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine	Production Capacity(pcs/h):	10,000–35,000 Capsules/hour
Motor(kw):	2.12KW	Net Weight(kg):	420kg
Overall Size(mm):	11407801600mm	Applicable Capsule:	00#-4#
Filling Material:	Small Dry Granules (non-sticky)	Key Word:	Semi Automatic Capsule Filling Machine
Highlight:	capsule filling device , capsule filling equipment

SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine

Product Description of Capsule Filling Machine

SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine is a high-efficiency pharmaceutical equipment designed for medium-scale production in the pharmaceutical, nutraceutical, and health supplement industries. Featuring two independently controlled filling heads, this machine provides precise and fast capsule filling, significantly improving production efficiency while ensuring consistent product quality.

Ideal for laboratories, small to medium enterprises, or production lines that require flexible output, this semi-automatic capsule filler combines high precision, reliability, and cost-effectiveness.

Detailed Parameters of Capsule Filling Machine

Model	SED-BJ-IV
Capsule Size	#00 – #4
Total Power	2.12 KW
Output Capacity	10,000–35,000 capsules/hour
Filling Material	Small dry granules (non-sticky)
Air Consumption	0.03 m³/min, 0.7 MPa
Net Weight	420 kg
Gross Weight	480 kg
Machine Dimensions	1140 × 780 × 1600 mm
Packing Dimensions	1650 × 800 × 1750 mm

Features of Capsule Filling Machine

Equipped with two independently controlled filling heads for simultaneous material processing.

Adjustable parameters, including filling volume and speed, to accommodate different production requirements.

Advanced servo motors and precision metering pumps ensure accurate and consistent capsule filling.

Supports multiple filling modes, including quantitative filling and continuous filling.

Compatible with different molds and hoppers for various capsule sizes (#00–#4).

Touchscreen control system for intuitive and easy operation.

Hygienic & GMP Compliant Design

Stainless steel construction for easy cleaning and maintenance.

Equipped with multiple safety protections, including overload protection and emergency stop buttons.

Complies with international safety standards.

Product Detail

SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine 0

SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine 1

SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine 2

Application of Capsule Filling Machine
